48

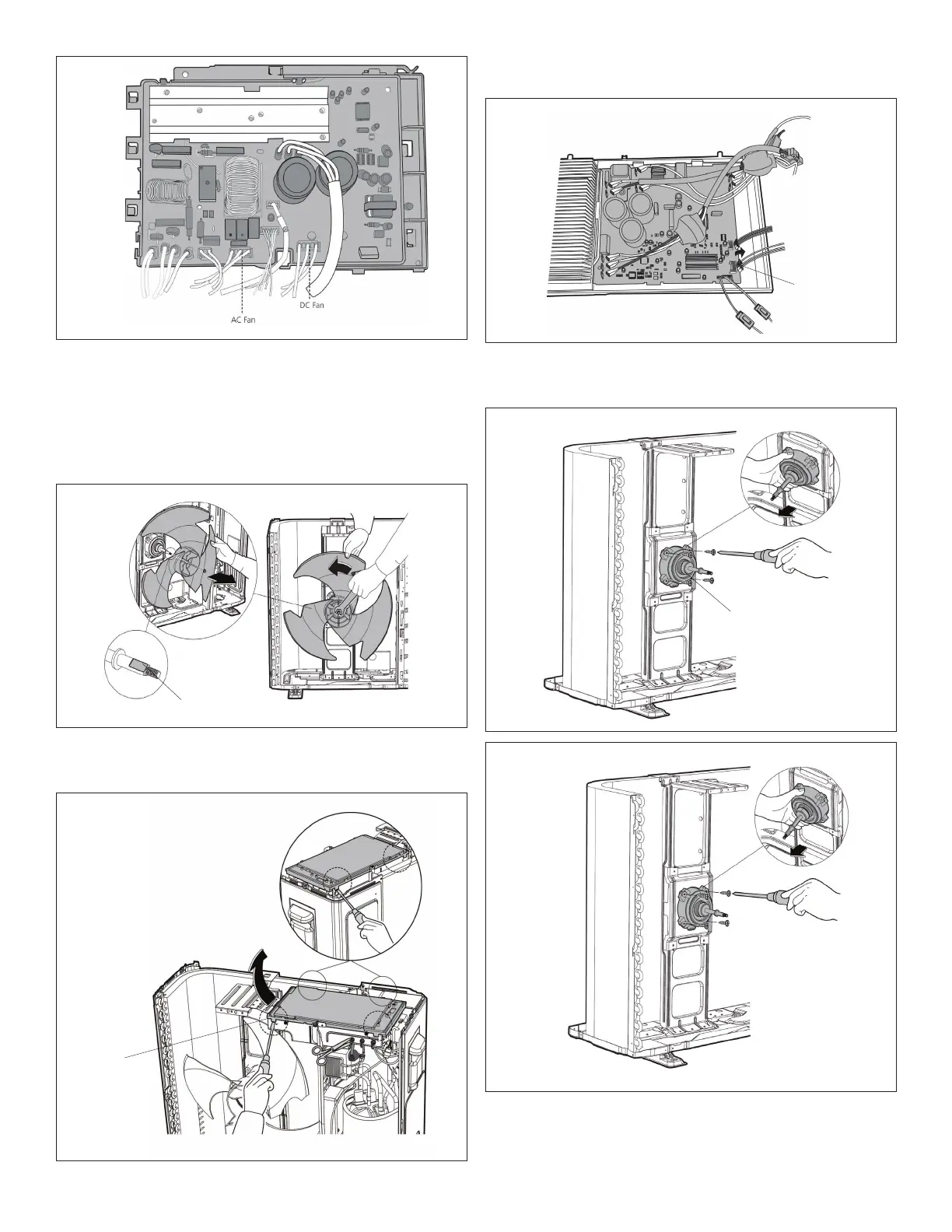

Step 4. Removethescrewssecuringthefanmotorto
body.Thenremovefanmotor.
17.2.8. Fan Disassembly (MWHA024S4)
Step 1. Removethenutsecuritythefanwithaspanner.
Thenremovethefan.
D Cut
Step 2. Releasethehooksandthenopentheelectronic
controlboxcover.
Hook
Step 3. Disconnecttheconnectorforthefanmotorfrom
theelectroniccontrolboard.
Fan Motor Connector
Step 4. Removethescrewssecuringthefanmotorfrom
body.Removethefan.
Fan Motor
