Lennox MWHA018S4-1P User Manual

47

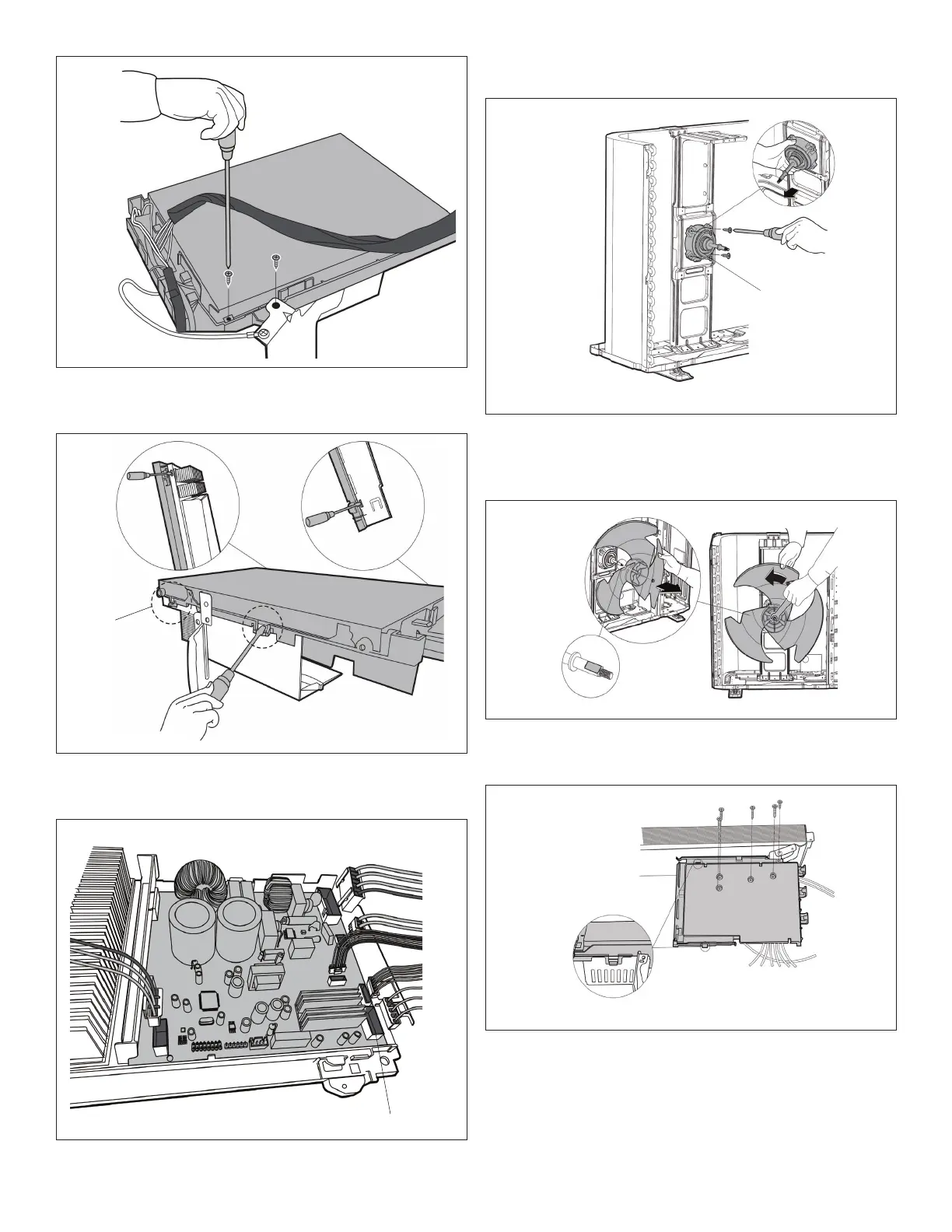

Step 3. Releasethehooksandthenopentheelectronic
controlboxcover.
Hook
Step 4. Disconnecttheconnectorfromthefanmotor
fromtheelectroniccontrolboard.
Fan Motor Connector
Step 5. Removethescrewssecuringthefanmotorand
thenremovefanassembly.
Fan Motor
17.2.7. Fan Disassembly (MWHA018S4)
Step 1. Removethenutsecuritythefantothefanmotor.
Step 2. Removethescrewssecuringthecoverofthe
electroniccontrolboxcover.
Step 3. Disconnectconnectorfromelectroniccontrol
boardplug.
