Page 79
XP21
Y1 DEMAND
DISCHARGE
SENSOR
(RT28)*
COMPRESSOR
CONTACTOR
ENERGIZED
HIGH
PRESSURE
SWITCH (S4)
COMPRESSOR
CONTACTOR
DE−ENERGIZED
COMPRESSOR
ANTI−SHORT
CYCLE TIMER
BEGINS
INCREMENT
5−STRIKE
COUNTER
1
LED ALERT
CODE / OR
MODERATE
ALERT 414
DISPLAYED
ANTI−SHORT
CYCLE TIMER
ENDS
COMPRESSOR
CONTACTOR
ENERGIZED
DISCHARGE
SENSOR (RT28)
IS AT OR
BELOW 225ºF
WAITING FOR
TEMPERATURE
DROP TO OR
BELOW 225ºF
5−STRIKE
COUNTER
REACHES 5
WITHIN A SINGLE
Y1 DEMAND
DISCHARGE
SENSOR (RT28)
LOCKOUT
LED ALERT
CODE / OR
CRITICAL
ALERT 415
CLEARED
SERVICE
REQUIRED
2
LED ALERT
CODE / OR
MODERATE
ALERT 414
CLEARED
NORMAL
OPERATION
CLOSED
CLOSED
OPEN
OPEN
1
If 5−strike counter has four or less strikes when Y1 demand
is terminated or satisfied, the strike counter will reset to
zero. In a icomfort setup, the thermostat will terminate
demand when the compressor contactor is de−energized. If
demand is satisfied when alarm is not active, the 5−strike
counter will reset.
2
Lockouts can be reset by either cycling power off to the
heat pump control’s (A175) R terminal, or placing a jumper
on the field test pins (E33) between 1 to 2 seconds.
NO
*
If temperature is at or above 279ºF.
YES

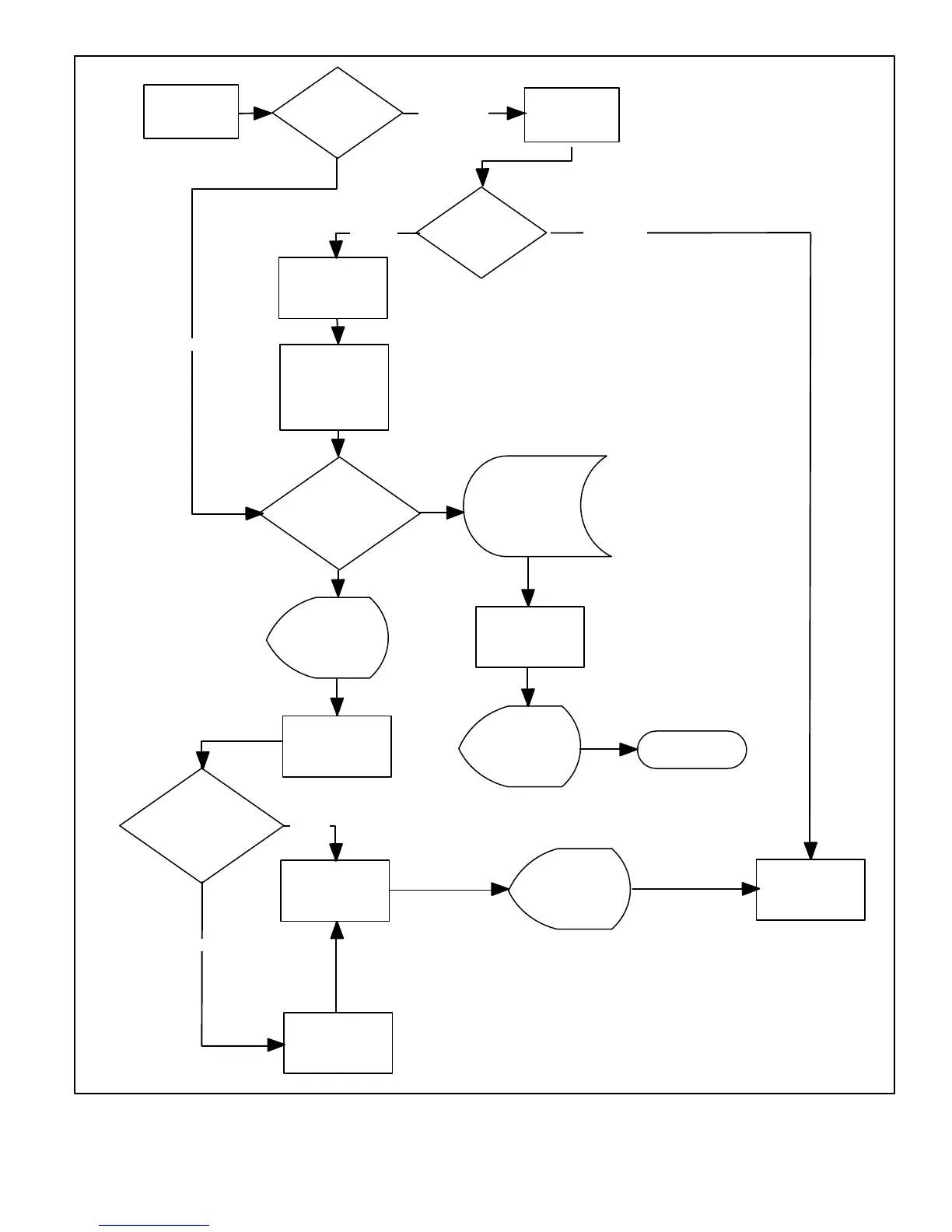

Figure 45. High Discharge Temperature Sensor (RT28) Sequence of Operation (All Versions)
