Lennox VRB Series User Manual

3

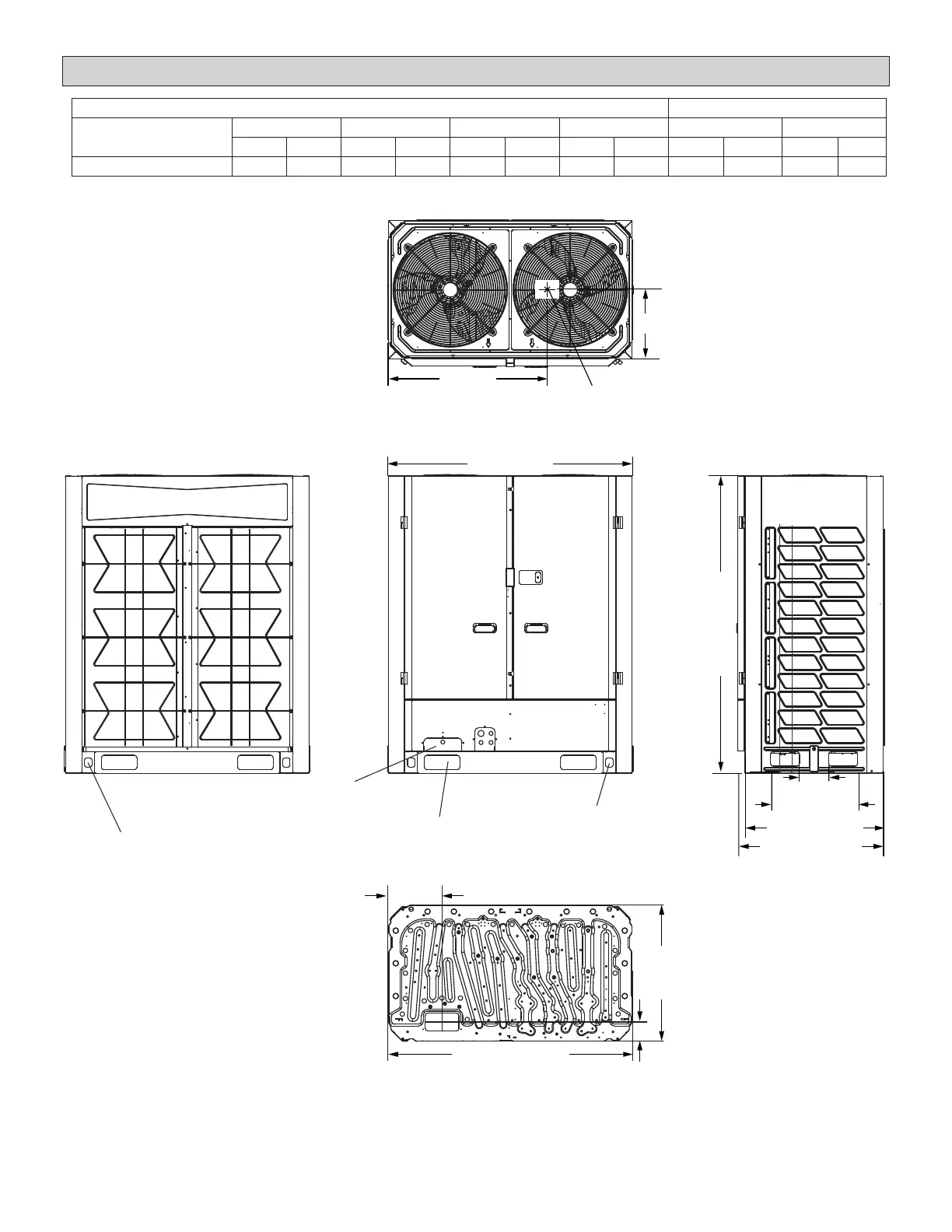

Unit Dimensions - inches (mm)
AA
BB
DD CC
TOP VIEW
FRONT VIEW
FORKLIFT SLOT
(BOTH SIDES)
REFRIGERANT LINE PATH
LAG BOLT DESIGNATION
(BOTH SIDES)
(TO ACCESS LAG BOLT)
LIFTING HOLES
(BOTH SIDES)
(FOR RIGGING)
11-3/4 (298)
4-1/8 (105)
29-1/2
(749)
53-1/8 (1349)
BACK VIEW
PARALLEL MODULE
PIPING KNOCKOUT
52-3/4 (1340)
64-3/8
(1635)
SIDE VIEW
6-1/4 (159)
31-1/2 (800)
18-7/8 (479)
29-7/8 (759)
BASE PAN VIEW
EE
FF
CENTER OF
GRAVITY
CORNER WEIGHTS CENTER OF GRAVITY
Model No. AA BB CC DD EE FF
lbs. kg lbs. kg lbs. kg lbs. kg in. mm in. mm
072, 096, 120 121 55 203 92 211 96 251 114 27-3/4 705 12-1/4 311
