44

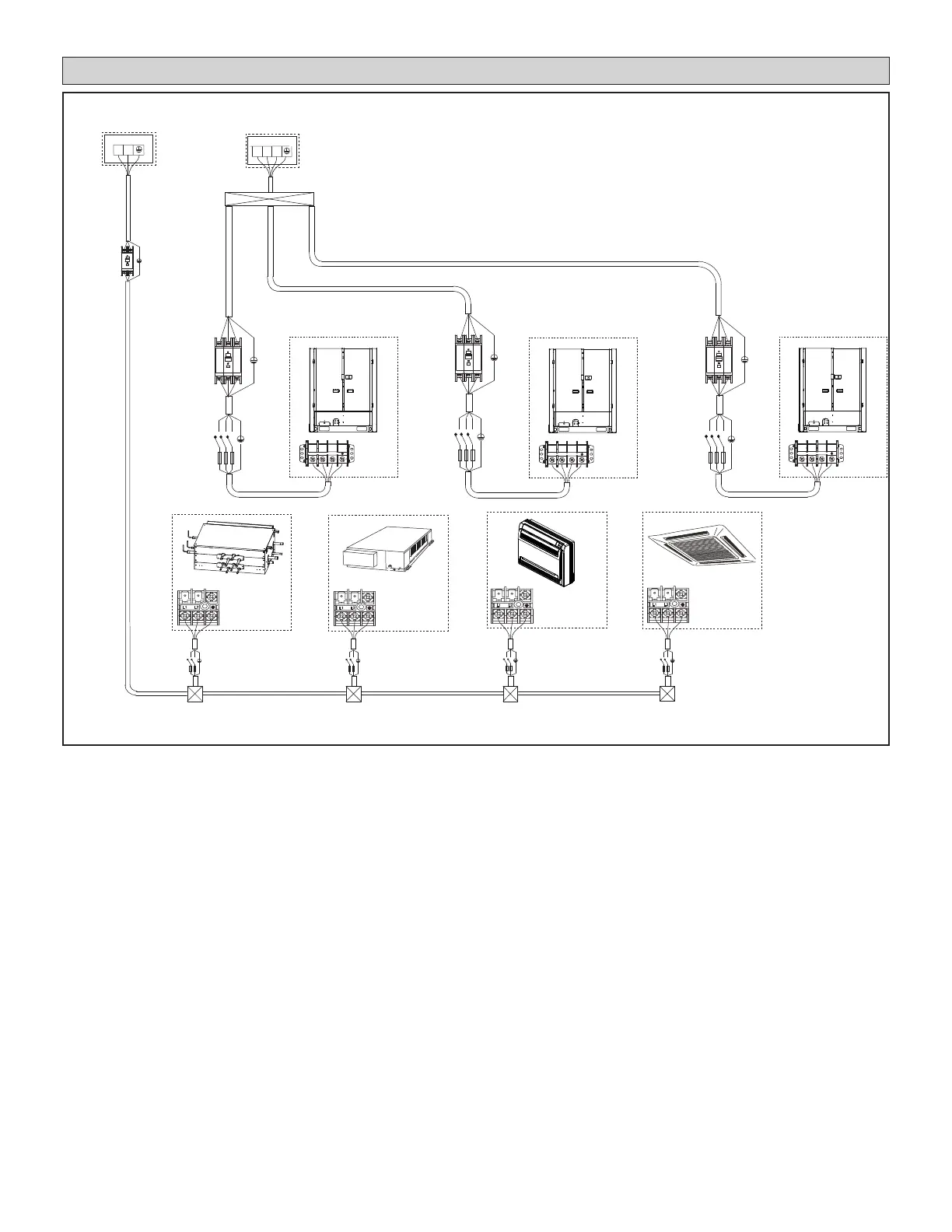

Figure 34. T
ypical Power Wiring
Electrical Installation for Indoor and Outdoor Units
L2
L3
L1
L2
L1
208/230V 3Ph 60Hz
or 460V 3Ph 60Hz
Power supply
208/230V 1Ph 60Hz
Power supply
Mode Selection Box
Indoor unit
Indoor unit
Indoor unit
Dedicated
breaker
Service
Disconnect
L1
L2
L1
L2
Fuse
Service
Disconnect
L1
L2
Fuse
Service
Disconnect
L1
L2
Fuse
Service
Disconnect
L1
L2
Fuse
Outdoor Unit (Main Unit)
L1
L2
L3
Outdoor Unit (Sub1 unit)
L1
L2
L3
Outdoor Unit(Sub2 Unit)
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
Service
Disconnect
Service
Disconnect
Service
Disconnect
Always follow NEC/CEC and Local Codes.
