7

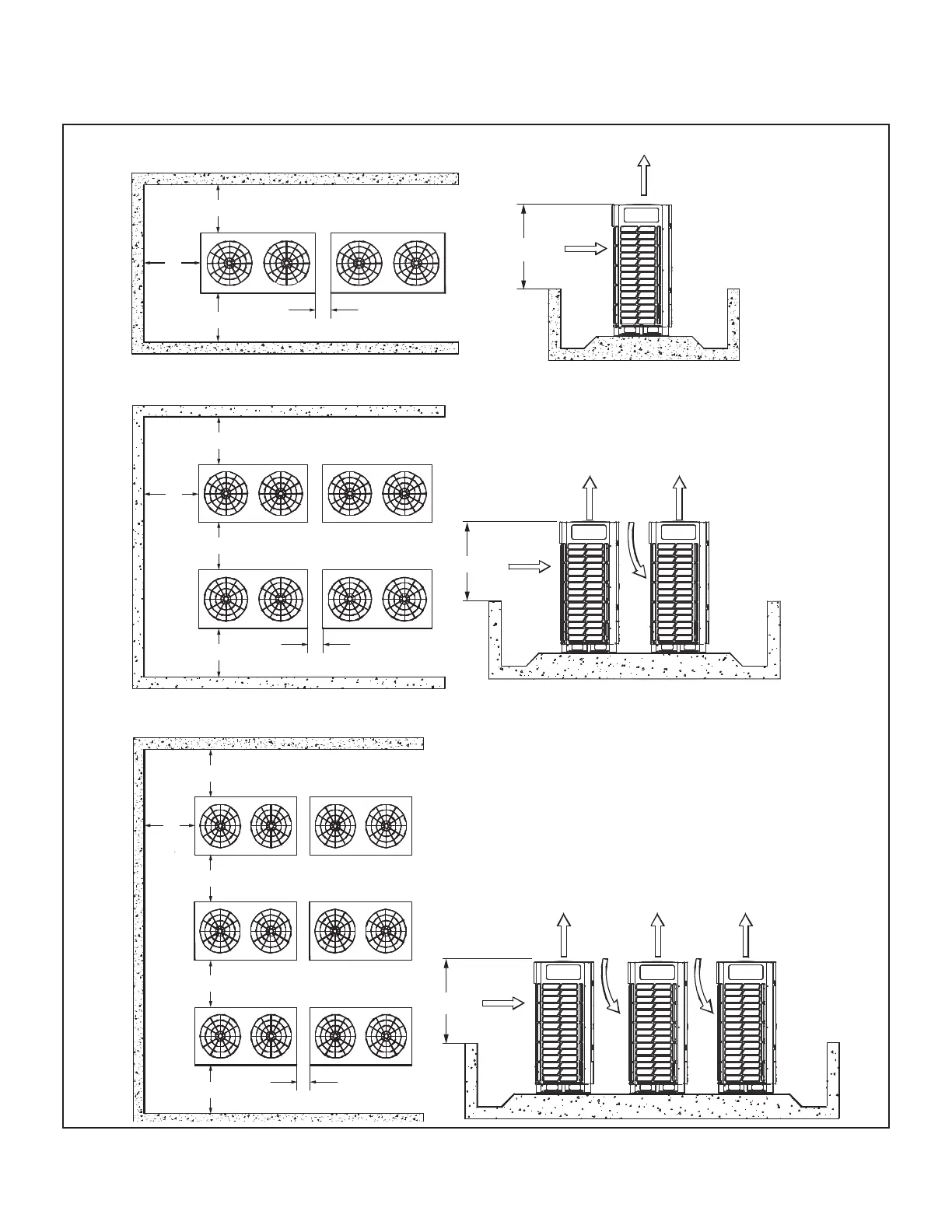

Figure 1. Installation Clearances - inches (mm)
SINGLE ROW
TWO ROWS
THREE OR MORE ROWS
31 (800)
Air Flow
Air Flow
Air Flow
Air Flow
31 (800)
Air Flow
31 (800)
Air Flow
39 (991)
39 (991)
Front
Front
39 (991)
4 to 20 (102 to 508)
39 (991)
39 (991)
39 (991)
Front
Front
Front
Front
39 (991)
4 to 20 (102 to 508)
39 (991)
39 (991)
39 (991)
39 (991)
39 (991)
Front
Front
Front
Front
Front
Front
4 to 20 (102 to 508)
Front
Rear
Lifting the Unit
•
Do not hold the air inlet grille while lifting the unit.
This could result in damage to the cabinet.
•
Do not touch the fan blades with your hands or
other objects while lifting the unit.
6
8
