Lennox VRB Series User Manual

12

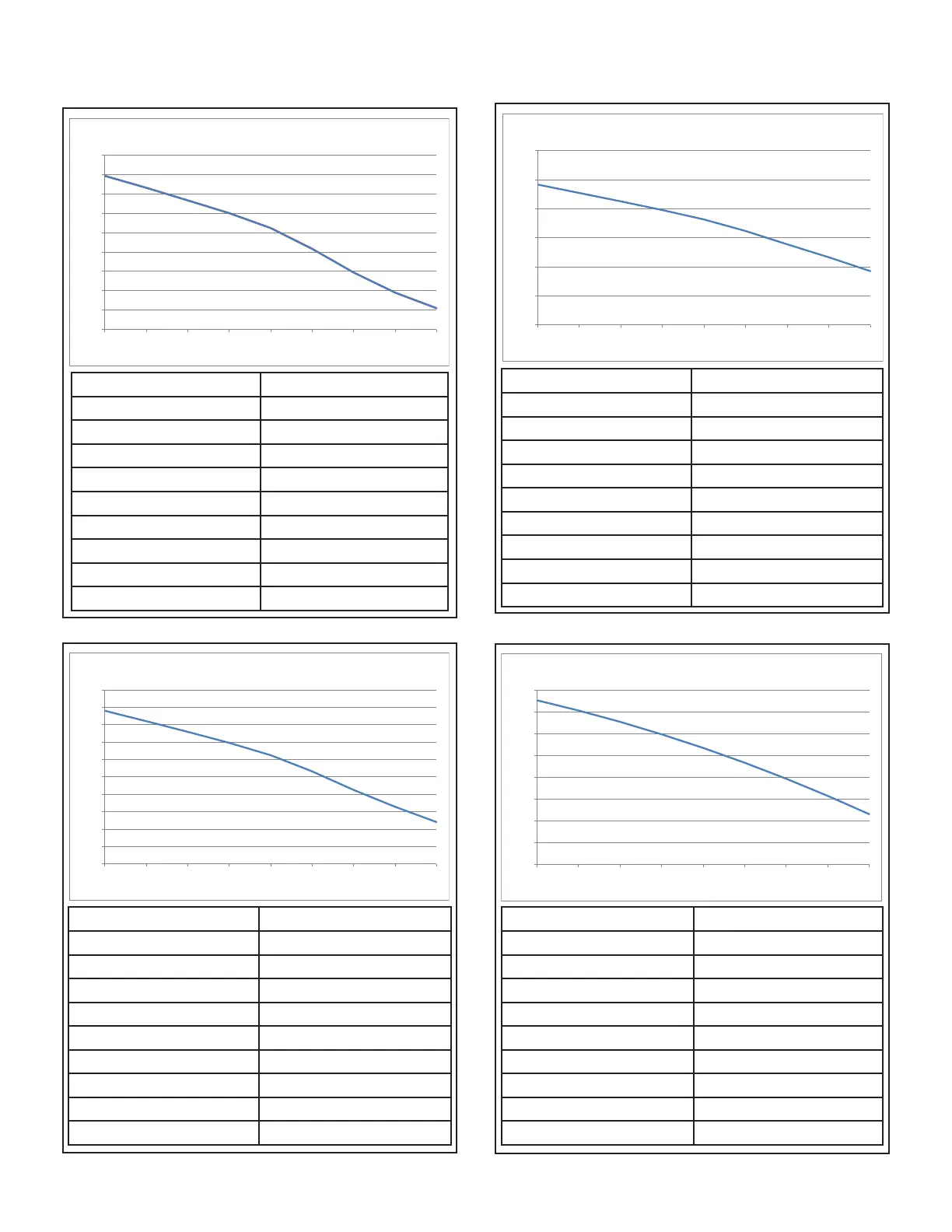

Discharge Duct Pressure Curves
VRB072
VRB144, 168, & 192
Static Pressure (in.wg.) Air Volume (CFM)
0 13934
0.04 13320
0.08 12667
0.12 12010
0.16 11236
0.2 10163
0.24 8940
0.28 7902
0.32 7094
VRB096
Static Pressure (in.wg.) Air Volume (CFM)
0 14800
0.04 14205
0.08 13587
0.12 12958
0.16 12248
0.2 11315
0.24 10247
0.28 9279
0.32 8402
VRB120
Static Pressure (in.wg.) Air Volume (CFM)
0 15667
0.04 15090
0.08 14508
0.12 13907
0.16 13261
0.2 12467
0.24 11554
0.28 10655
0.32 9709
Static Pressure (in.wg.) Air Volume (CFM)
0 24544
0.04 24079
0.08 23559
0.12 22986
0.16 22360
0.2 21679
0.24 20945
0.28 20157
0.32 19315
6000
7000
8000
9000
10000
11000
12000
13000
14000
15000
0 0.04 0.08 0.12 0.16 0.2 0.24 0.28 0.32
6-ton Air Volume (CFM)
6000
7000
8000
9000
10000
11000
12000
13000
14000
15000
16000
0 0.04 0.08 0.12 0.16 0.2 0.24 0.28 0.32
8-ton Air Volume (CFM)
6000
8000
10000
12000
14000
16000
18000
0 0.04 0.08 0.12 0.16 0.2 0.24 0.28 0.32
10-ton Air Volume (CFM)
17000
18000
19000
20000
21000
22000
23000
24000
25000
0 0.04 0.08 0.12 0.16 0.2 0.24 0.28 0.32
12~16-ton Air Volume (CFM)
