Lennox XC21 Engineering Data

XC21 - 2 to 5 Ton Air Conditioner / Page 12
39−1/2 (1003) 35−1/2 (902)
47
(1194)
18−1/2
(470)
8 (203)
1 (25)
4−1/2
(114)
LIQUID LINE
INLET
SUCTION LINE
INLET
ELECTRICAL
INLETS
TOP VIEW
WEIV SSECCAWEIV EDIS
DISCHARGE
AIR
UNIT SUPPORT
FEET
TOP VIEW BASE SECTION
16−7/8
(429)
4−5/8
(117)
26−7/8
(683)
8−3/4
(222)
30−3/4
(781)
3−3/4
(95)
3−1/8
(79)

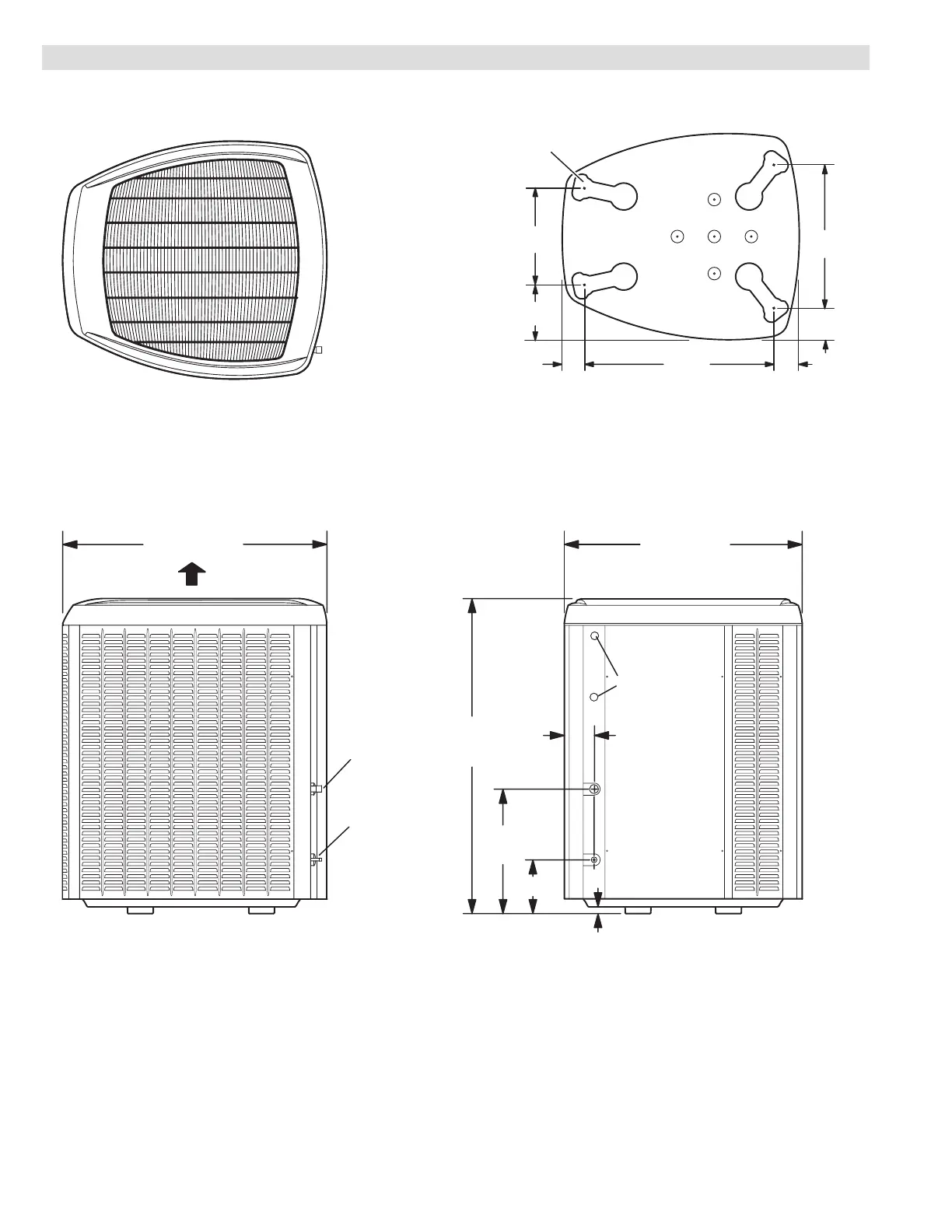

DIMENSIONS - INCHES (MM)

Lennox XC21 Specifications

General

SEER Rating	up to 21.00
Sound Rating	as low as 69 dB
Refrigerant	R-410A
Energy Star Certified	Yes
Compressor Type	Two-Stage
Cooling Capacity (BTU/h)	24000-54000
Warranty	10-Year Limited Warranty on compressor
