XP14 SERIES

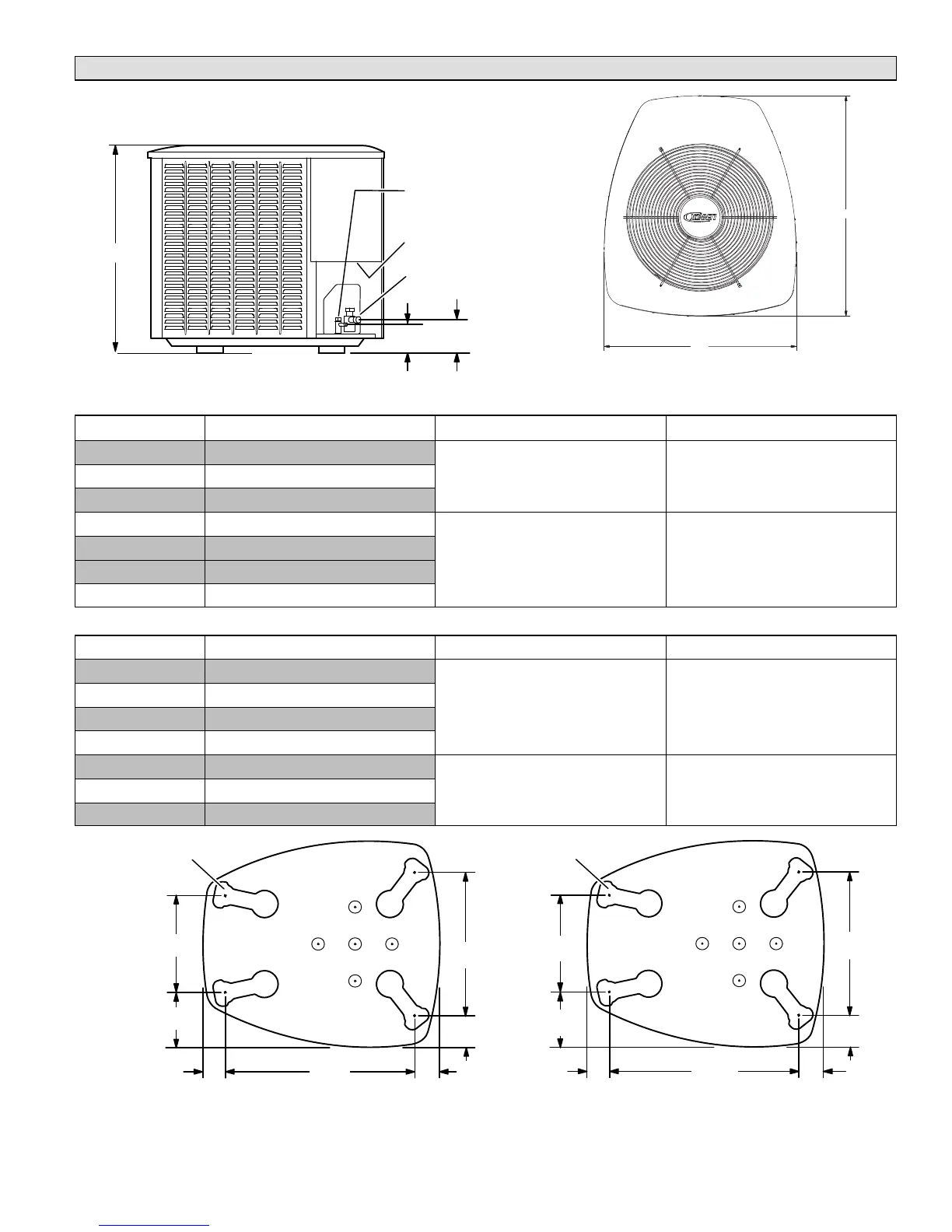

Unit Dimensions - Inches (mm)
ELECTRICAL INLETS
SIDE VIEW
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
4-1/2”
(108)
4-3/4”
(121)
TOP VIEW
A
B
C
Table 1. XP14-XXX-230-01 through 07
Model Number
A B C
XP14-018-230 31 (787)
27 (686) 28 (711)
XP14-024-230 31 (787)
XP14-030-230 35 (889)
XP14-036-230 31 (787)
35-1/2 (902) 39-1/2 (1003)
XP14-042-230 39 (991)
XP14-048-230 39 (991)
XP14-060-230 45 (1143)
Table 2. XP14-XXX-230-08 / -09
Model Number A B C
XP14-018-230 39 (991)
30-1/2 (775) 35 (889)
XP14-024-230 39 (991)
XP14-030-230 39 (991)
XP14-036-230 35 (889)
XP14-042-230 39 (991)
35-1/2 (902) 39-1/2 (1003)
XP14-048-230 39 (991)
XP14-060-230 45 (1143)
16-7/8
(429)
30-3/4
(781)
26-7/8
(683)
3-3/4
(95)
8-3/4
(222)
3-1/8
(79)
XP14-042 TO -060 BASE WITH
ELONGATED LEGS (LARGE)
4-5/8
(117)
13-7/8
(352)
K
J
UNIT SUPPORT FEET
XP14-018 AND -036 BASE WITH
ELONGATED LEGS (MEDIUM)
7-3/4
(197)
3-1/4
(83)
27-1/8
(689)
3-5/8
(92)
4-1/2
(114)
20-5/8
(524)
UNIT SUPPORT FEET
