Step Screw (quantity) Color
Torque
3
M1.6 × L2.1 mm, flat-head, nylon-coated (7) Black 0.1 Nm
(1.1 kgf-cm)
When installing: Ensure that the connector is attached firmly.
1180 Smart card reader and cable (for selected models)
For access, remove these FRUs in order:
• “1070 Base cover assembly” on page 73
• “1150 Keyboard bezel assembly” on page 81

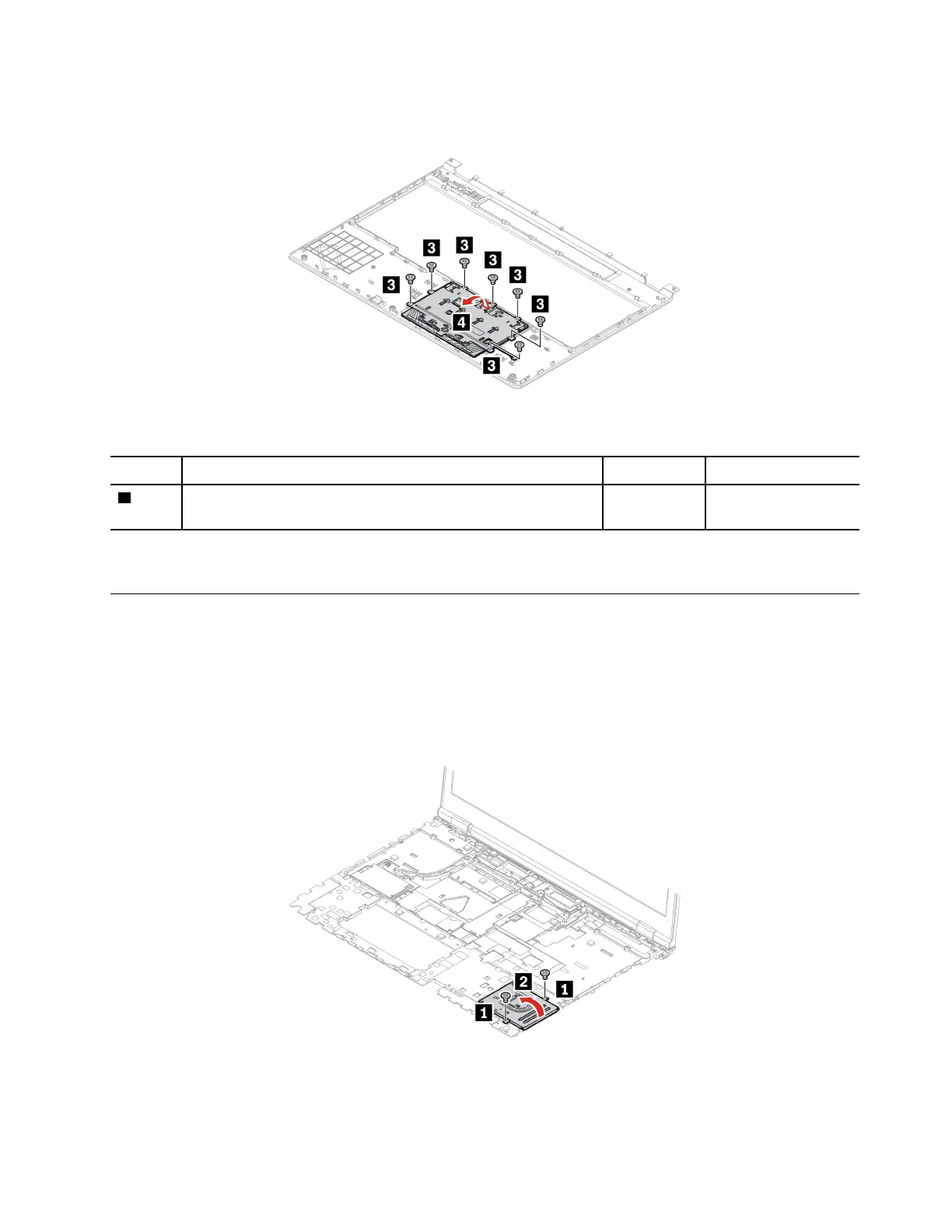

Removal steps of the smart card reader and cable
Chapter 9. Removing or replacing a FRU 85
To Next Page
