Note:CarefullyhandletheTR500Keybyitsedges.
8.LocatetheTR500KeyconnectorontheThinkServerRAID500AdapterandtheninserttheTR500Key
intotheconnector.YoumightneedtoremovetheThinkServerRAID500Adapterfirst,installtheTR500
KeyontheThinkServerRAID500Adapter,andthenreinstalltheThinkServerRAID500Adapter.See
“InstallingorremovingtheRAIDcard”onpage90
.
Note:EnsurethattheTR500KeyissecurelyseatedontheThinkServerRAID500Adapter.

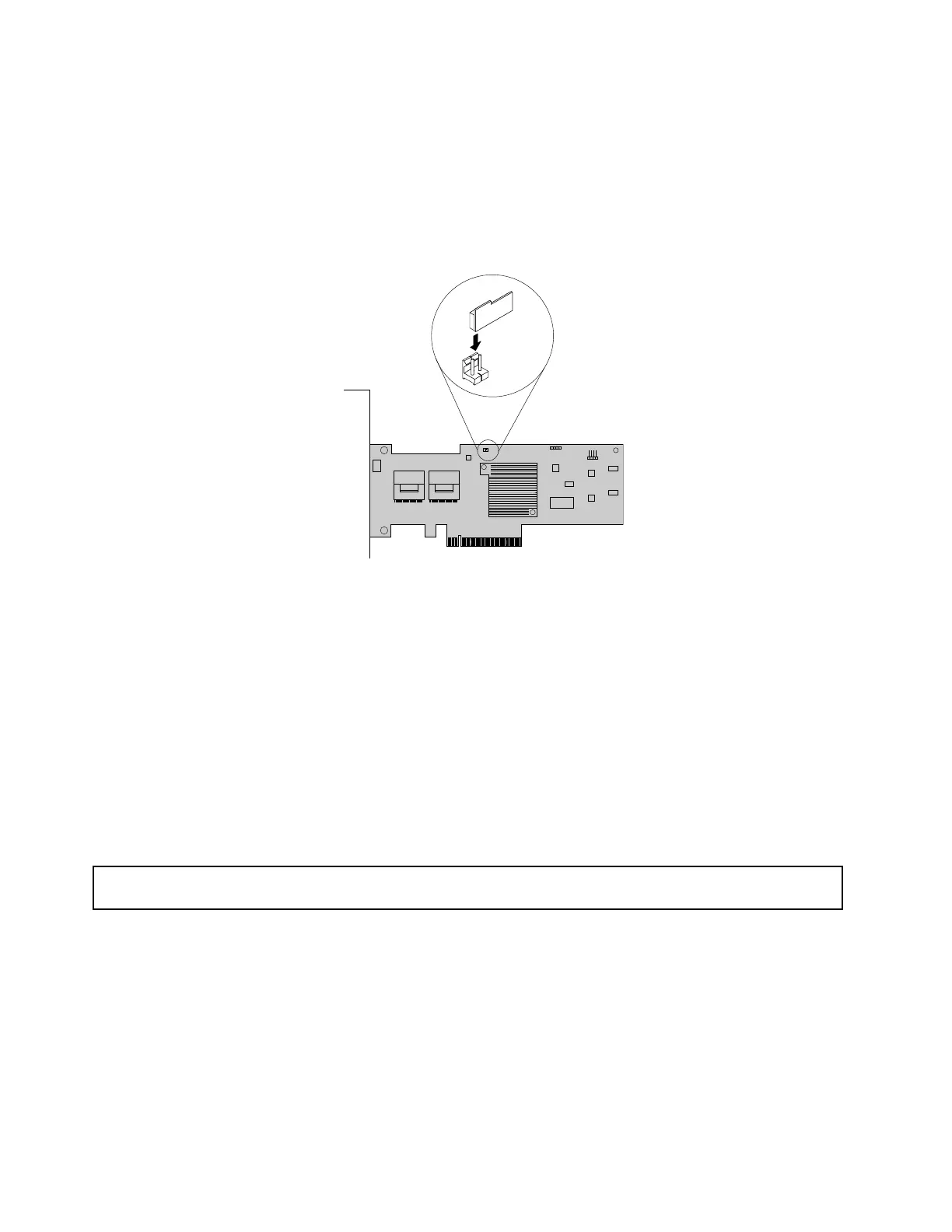

Figure54.InstallingtheTR500Key
9.ReconnectcablestotheThinkServerRAID500Adapter.See“Connectingthecables”onpage36.
10.Reinstalltherisercardassembly2.Theprocedureissimilartothatoftherisercardassembly1.See
“Replacingtherisercardassembly1”onpage160.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage170.Then,thehardware
RAID5andRAID50levelsareavailableforyourserverifyourserverhastherequirednumberofharddisk
drivesinstalled.RefertotheMegaRAIDSASSoftwareUserGuideonthedocumentationDVDthatcomes
withyourserverforinformationabouthowtoconfigurethehardwareRAID.
RemovingtheTR500Key
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiii
and“Guidelines”onpage73.
ThistopicprovidesinstructionsonhowtoremovetheTR500KeyfromaThinkServerRAID500Adapterif
yourserverhasaThinkServerRAID500AdapterwithaTR500Keyoptioninstalled.
Attention:BackupyourdatabeforeyoubeginifyouneedtoreconfigureRAIDandreinstalltheoperating
systemafterremovingtheTR500Key.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
96ThinkServerRD340UserGuideandHardwareMaintenanceManual
