8.Alignthescrewholesinthedriveadapterandthesolid-statedrivewiththecorrespondingholesinthe
drivebracket.Then,installthefivescrewstosecurethedriveadapterandthesolid-statedriveto
thebracket.

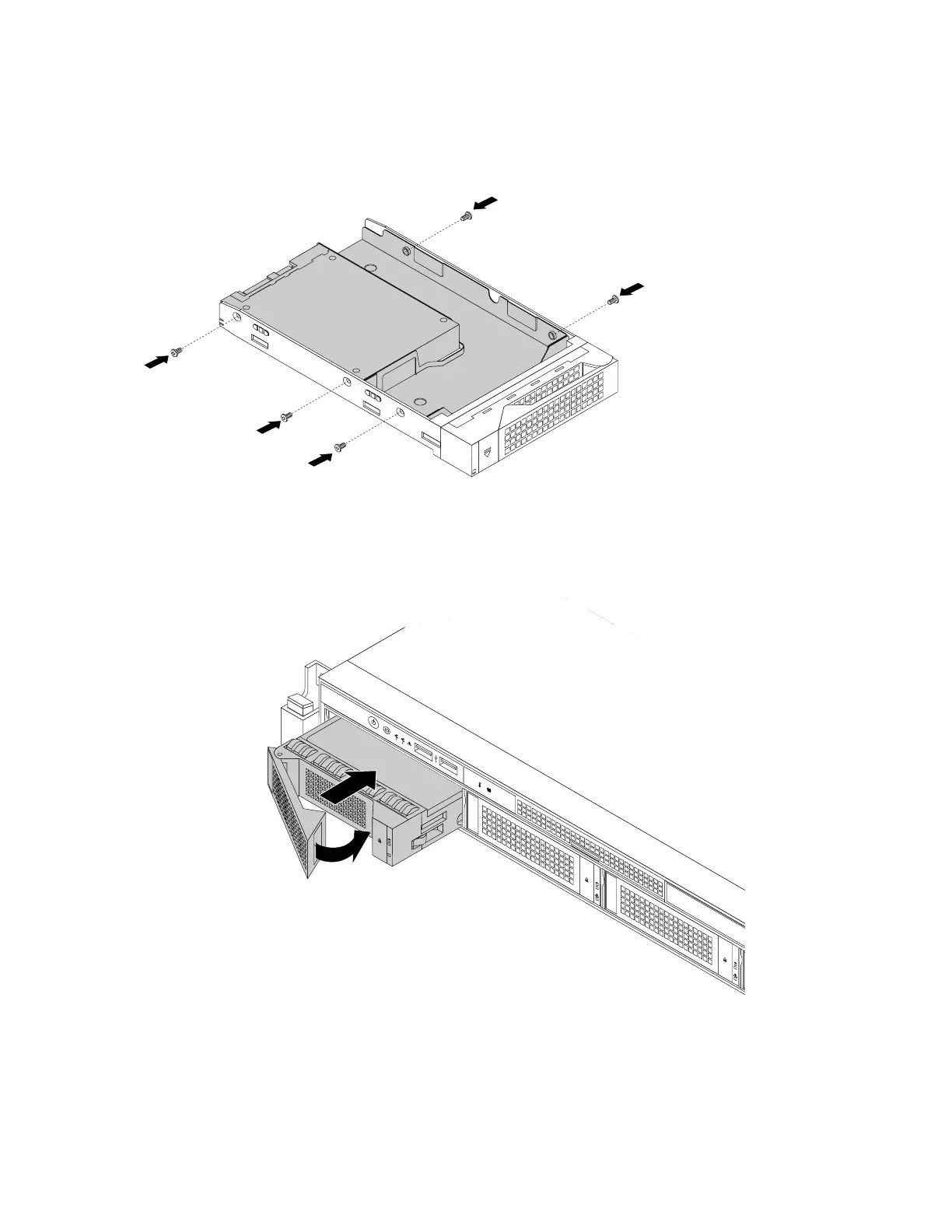

Figure88.Installingthescrewstosecurethedriveadapterandthesolid-statedrivetothebracket
9.Slidethebracketwiththesolid-statedriveintothedrivebayfromthefrontuntilitsnapsintoposition
andthencompletelyclosethehandle.
Figure89.Installingthebracketwiththesolid-statedrive
10.Checkthehard-disk-drivestatusLEDstoensurethatthesolid-statedriveisoperatingcorrectly.You
mighthavetorestarttheserverforthenewlyinstalledsolid-statedrivetoberecognized.See“Hot-swap
Chapter6.Installing,removing,orreplacinghardware135
