Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
•IfyouremovetheIDM,theserverwilllosethediagnosticLEDsontheIDMpanel.
ToreplacetheIDM,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage75.
4.LocatetheIDM.See“Servercomponents”onpage25.
5.DisconnectthecablefromtherearoftheIDM.
6.RemovethetwoscrewsthatsecuretheIDMandthencarefullyremovetheIDMfromthechassis.
ID
Mem
CPU
PSU

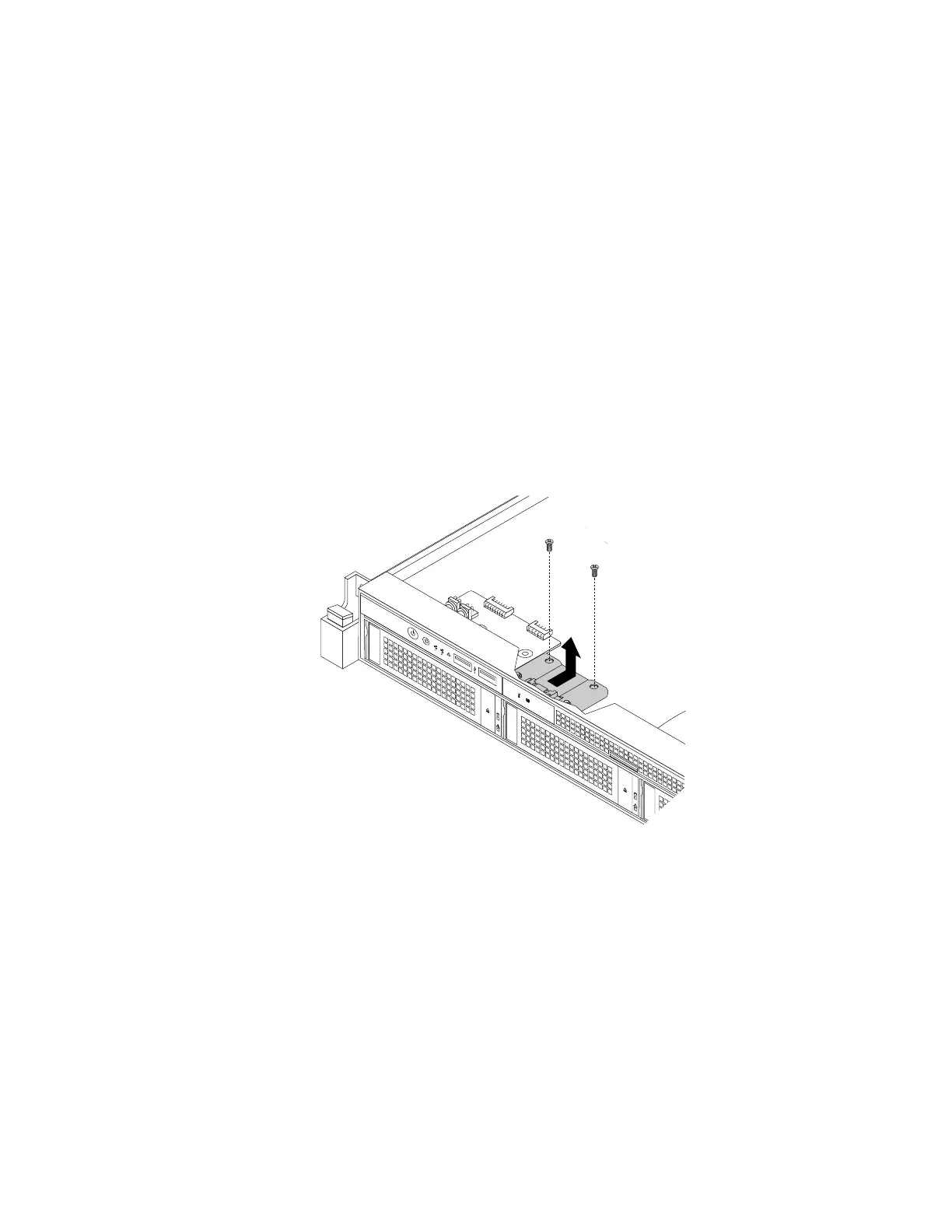

Figure114.RemovingtheIDM
7.Touchthestatic-protectivepackagethatcontainsthenewIDMtoanyunpaintedsurfaceontheoutside
oftheserver.Then,takethenewIDMoutofthepackage.
Chapter6.Installing,removing,orreplacinghardware155
