Lenovo ThinkVision E22-30 - Height Adjustment; Monitor Pivot

Chapter 1. 1-3

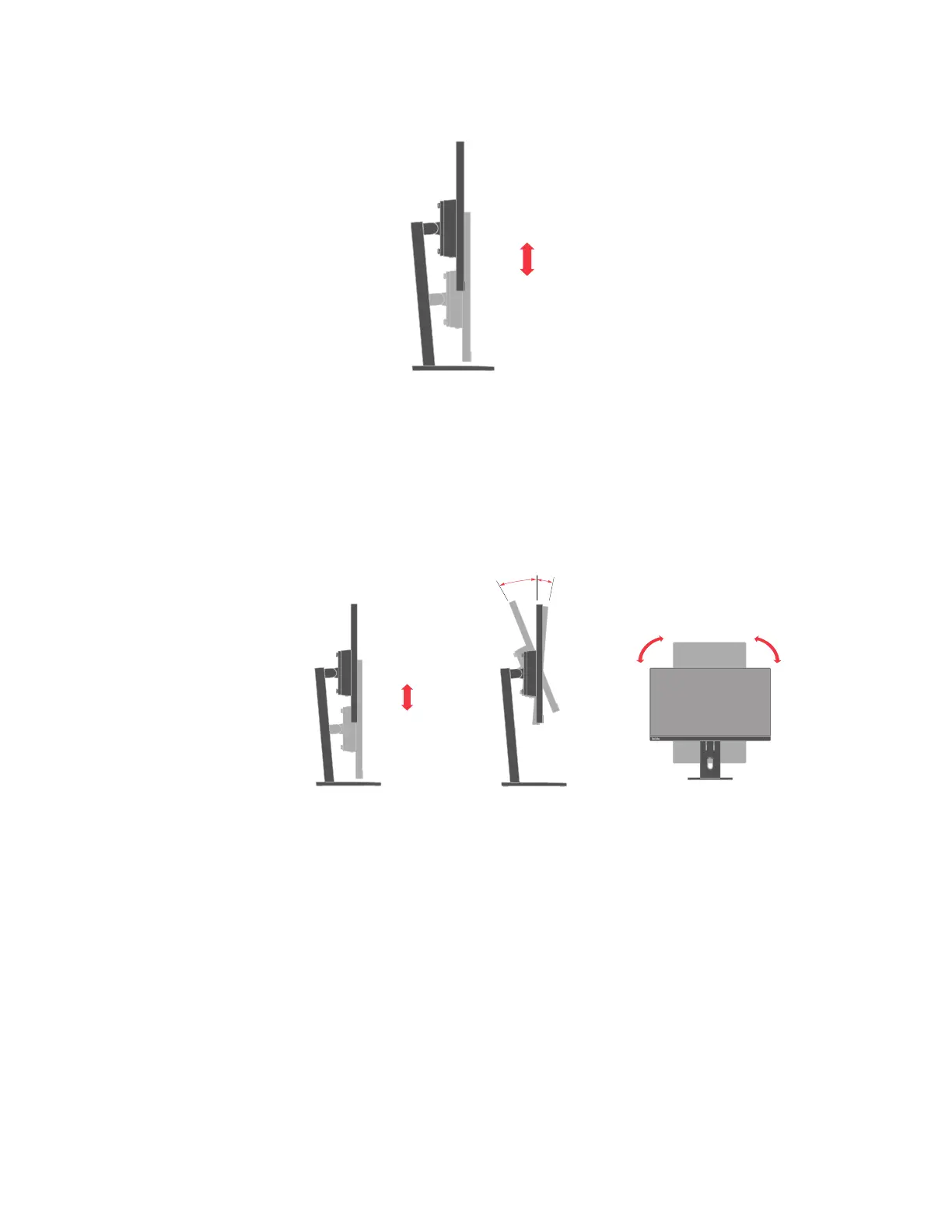

Height Adjustment
For height adjustment, user needs to press down or lift up the monitor.
155mm
Monitor Pivot
- Adjust the screen position before rotating the monitor screen. (Make sure that the
monitor screen ascent to its highest point, and it inclines backward at 22°.)
- then rotate clockwise /counterclockwise until the monitor stops at 90°.
155mm
90°
90°
-5°
0°
22
°
