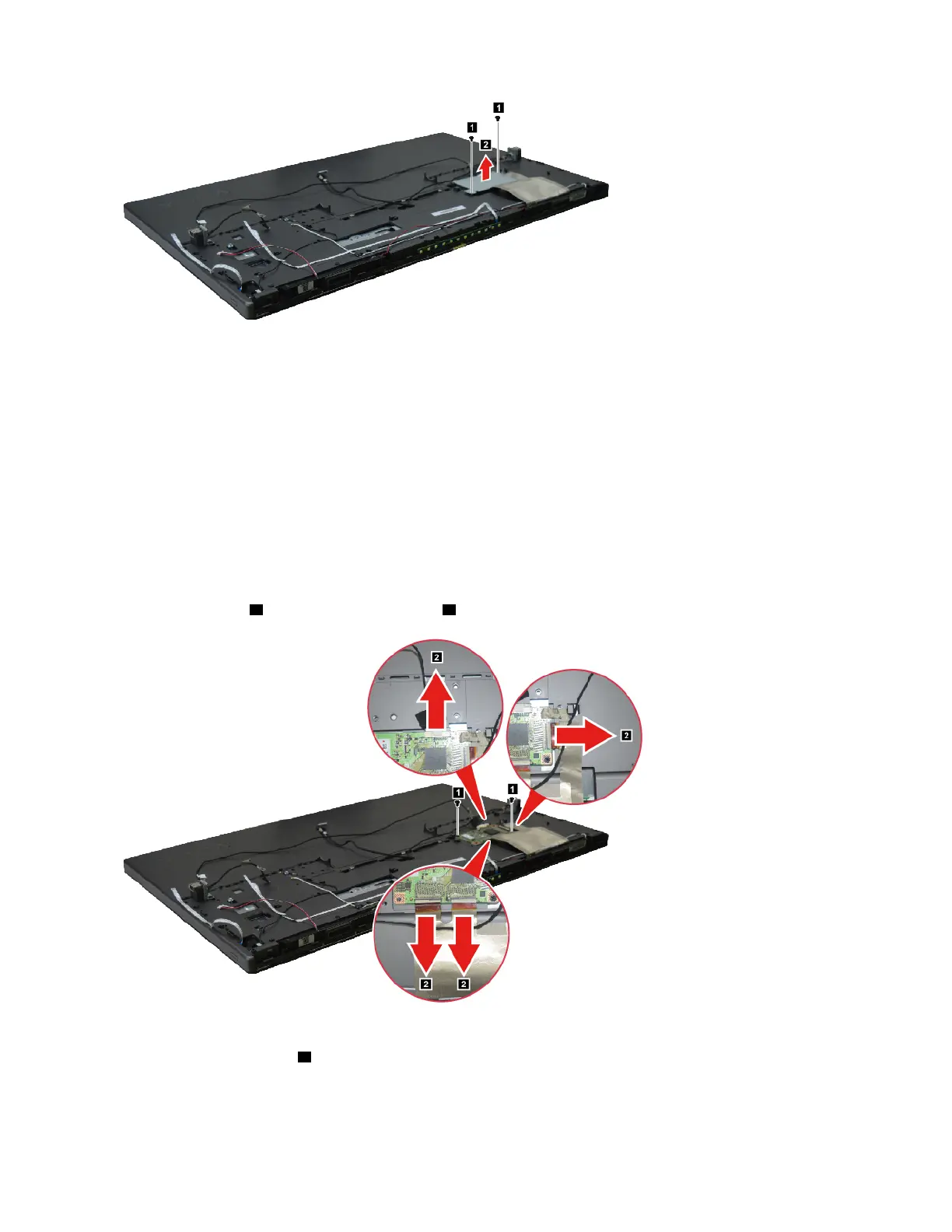

Figure 18. Removing the touch board shield
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 55.
Replacing the touch board
Make sure the following FRUs (or CRUs) have been removed.
“Replacing the computer display panel” on page 25
“Replacing the function board shield” on page 28
To remove the touch board, do the following:
1. Remove 2 screws
1 and detach 4 connectors 2 .
Figure 19. Removing screws and detaching connectors
2. Remove the touch board 3 .
32
