Accessory decoder LS150 4
4
Technical data
by Lenz
LS150
Lenz Elektronik GmbH D 35398 Giessen
+
C
1
JK
+
C
2
+
C
3
+
C
4
+
C
5
+
C
6

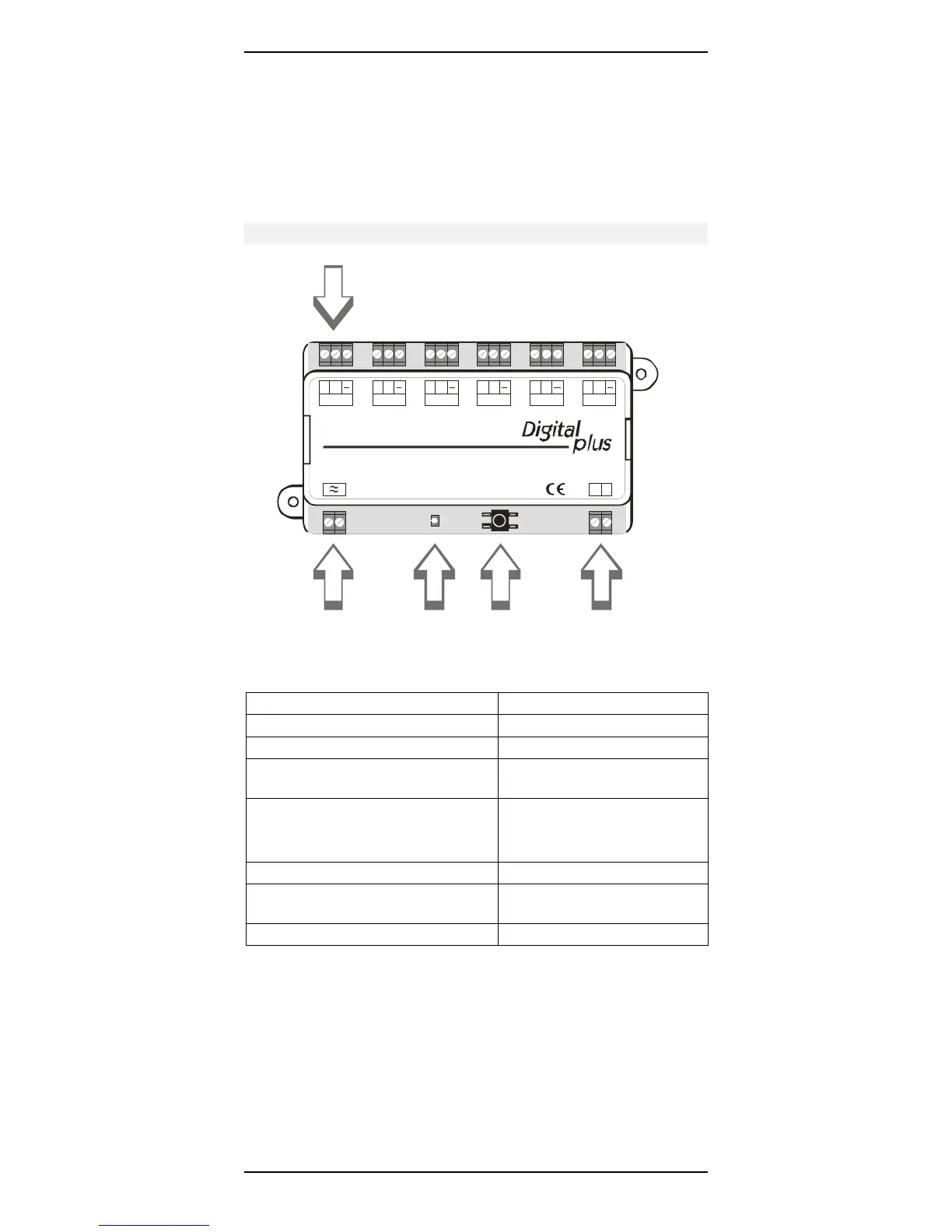

6 connections for controlling 6 turnouts
LED
AC
Transformer
connection
Push-
button
Connection to track
outputof the
digital system
Range of addresses 1 - 1024
Max. voltage on AC input 16 V
Max. voltage on input J, K 24 V
Output voltage approx. 1 V less than
voltage on AC input
Max. power on outputs:
up to 1 sec pulse duration 3 A
more than 1 sec pulse duration 1 A
Pulse duration of outputs settable from 0.1 to 10 sec
Minimum power consumption of
output
10mA
Dimensions 120 x 60 x 20 mm
Outputs of the LS150
The LS150 has 6 outputs, which means that up to 6 devices
(switch machines and/or semaphore signal drives, uncoupling
To Next Page
