Accessory decoder LS150 7
Connecting the LS150
by Lenz
LS150
Lenz Elektronik GmbH D 35398 Giessen
+
C
1
J
K
+
C
2
+
C
3
+
C
4
+
C
5
+
C
6
123
Coil 1 Coil 2
Twin-coil switch
machine
Motorized switch
machine
M
AC transformer
co n nectio n
to the track output of
the digital system

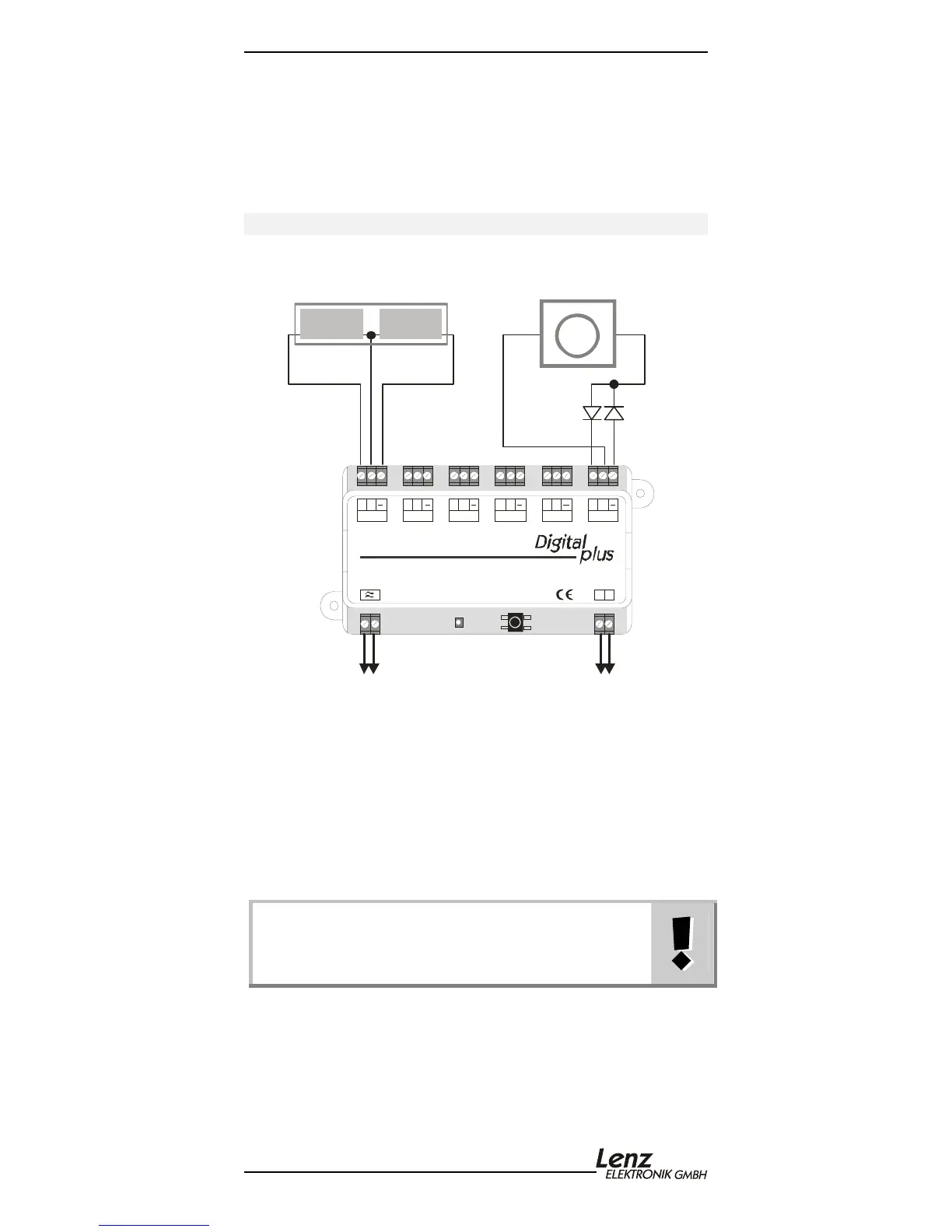

Figure 1
Connection to the AC power supply
Please see Figure 1 (Page 7), bottom left:
Connect the terminals (≈) to the terminals of an AC transformer.
Observe the maximum permissible voltage (see Technical data).
The power of the transformer must not exceed 45VA in order to
guarantee a functioning load protection. We recommend the use
of the Atlas Generator.
If you desire to use a transformer with a amperage that
is greater then 45VA, you must protect the LS150s with
a 10 ohm resistor current limiting resistor.
(Radio shack part #271-1101).
