Electrical installation
Connection plan
Drive controller type 712 for mains connection 190 ... 265 V
5
59
EDB712 DE/EN 2.1
712_004

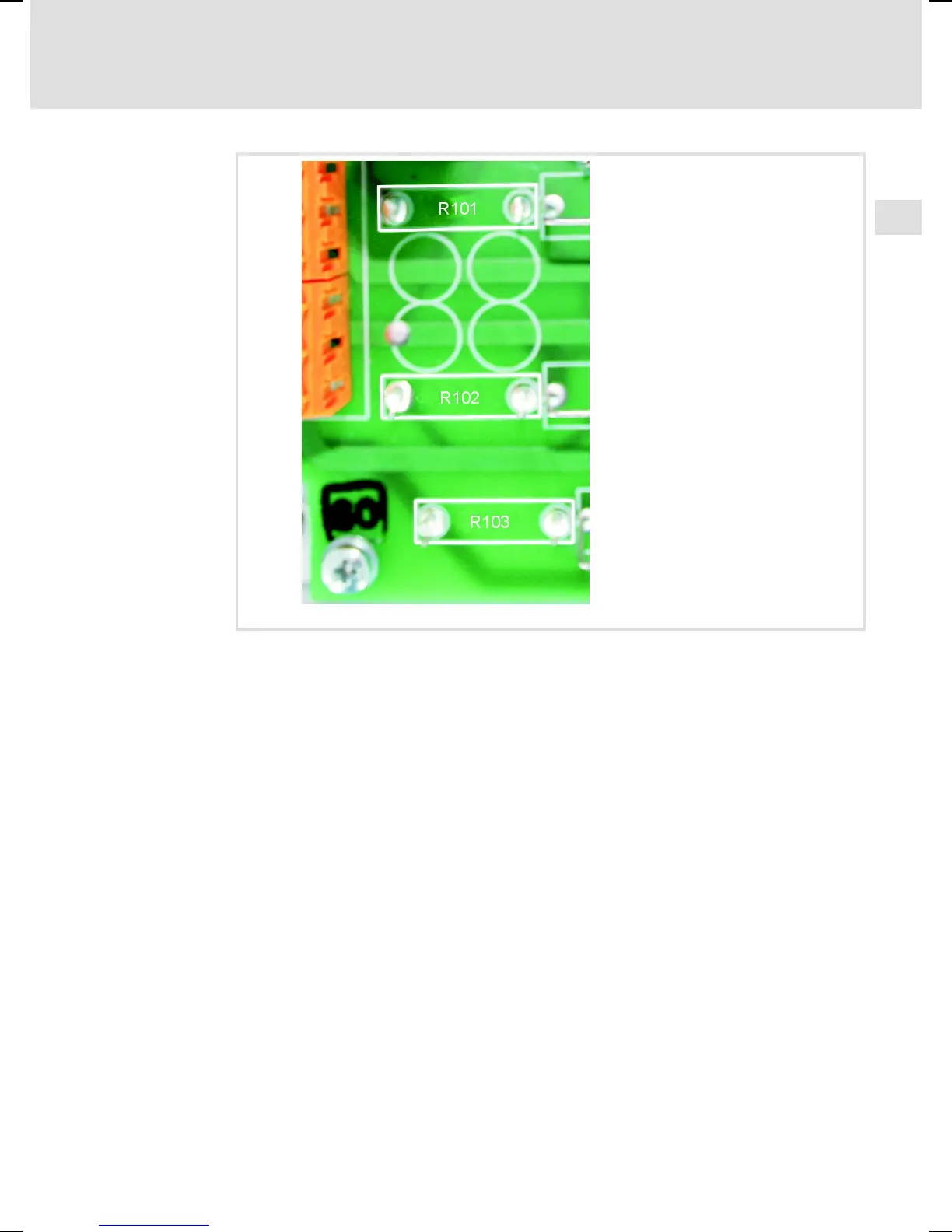

Fig. 5 Modification of the drive controller 712 to 190 ... 265 V mains connection by soldering
220 kΩ resistors
3. Solder three resistors (220 kΩ, 0.5 W) in positions R101, R102 and R103.
4. Re-fit protective cover over the device printed circuit board, if necessary.
