Electrical installation
Connection plan
Drive controller type 712 for mains connection 190 ... 265 V
5
60
EDB712 DE/EN 2.1
L2L1PE L3
M
3~
U
V
W
PE
L1 L2
L3
FF 16 A
712_001

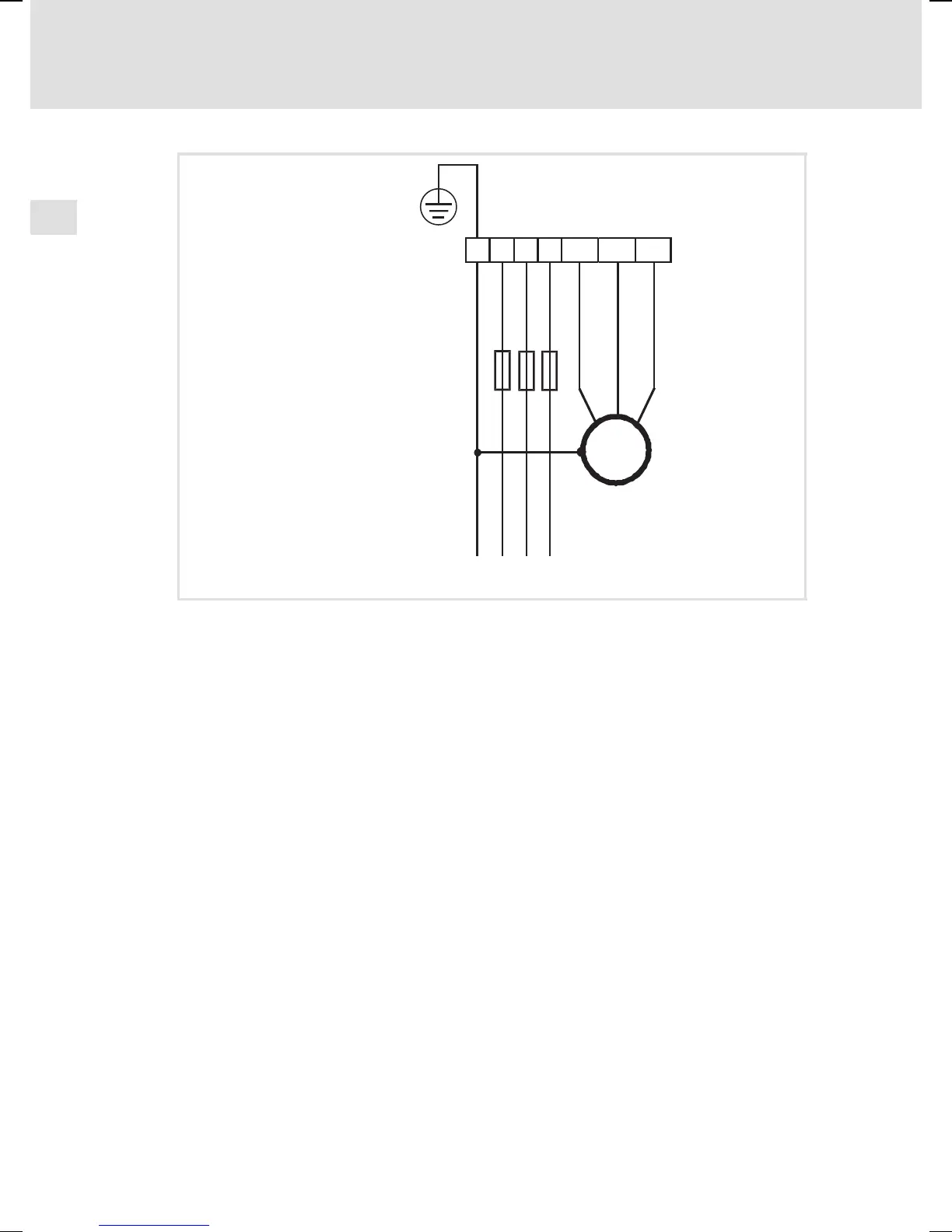

Fig. 6 Connection, drive controller 712 for mains connection 190 ... 265 V
