Lenze 8200 motec Mounting Instructions

Electrical installation
Mains connection
5

101
EDK82MV371 DE/EN/FR 7.0
5 Electrical installation
Mains connection
 Danger!
Dangerous electrical voltage
The discharge current to earth (PE) is > 3.5 mA AC or 10 mA DC.
Possible consequences:
ƒ Death or severe injuries when touching the device in the event of an
error.
Protective measures:
ƒ Implement the measures required in EN 61800−5−1. Especially:
– Fixed installation
– PE connection must comply with standards (PE conductor diameter
³ 10 mm
2
(Cu) or PE conductor must be connected twice)

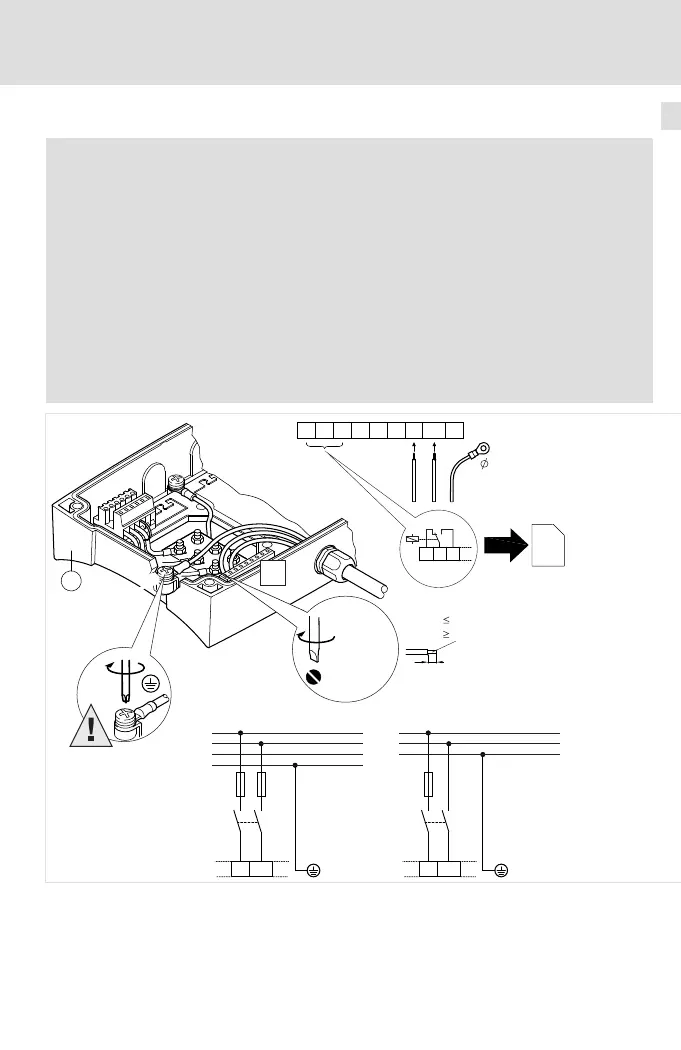

Fig. 5−0
103
8200mot057
3.4 Nm
30 lb-in
0.5 … 0.6 Nm
4.4 … 5.3 lb-in
6mm
2.5 mm
AWG 12
2
X1
1a
X1 X1
1/N/PE AC 180V...264V 45...65Hz2/PE AC 180V...264V 45...65Hz
L2/N
L2/NL1 L1
PE
L1 L1
F1 F1
K1 K1
L2 N
L3 PE
X1
BR1K14K12K11 BR2 L1 L2/N
L3
PE
5.5 mm
K11 K12 K14
L3 Termina X1/L3 without function (application e.g. as support terminal).
X1/ BR1, BR2 Brake resistor terminals (option)
