Lenze 9400 Series - Initial switch-on

Wiring the installation backplane
Wiring
Terminal assignment
5

55
EDK94ZPP0364 ZH/EN 2.0

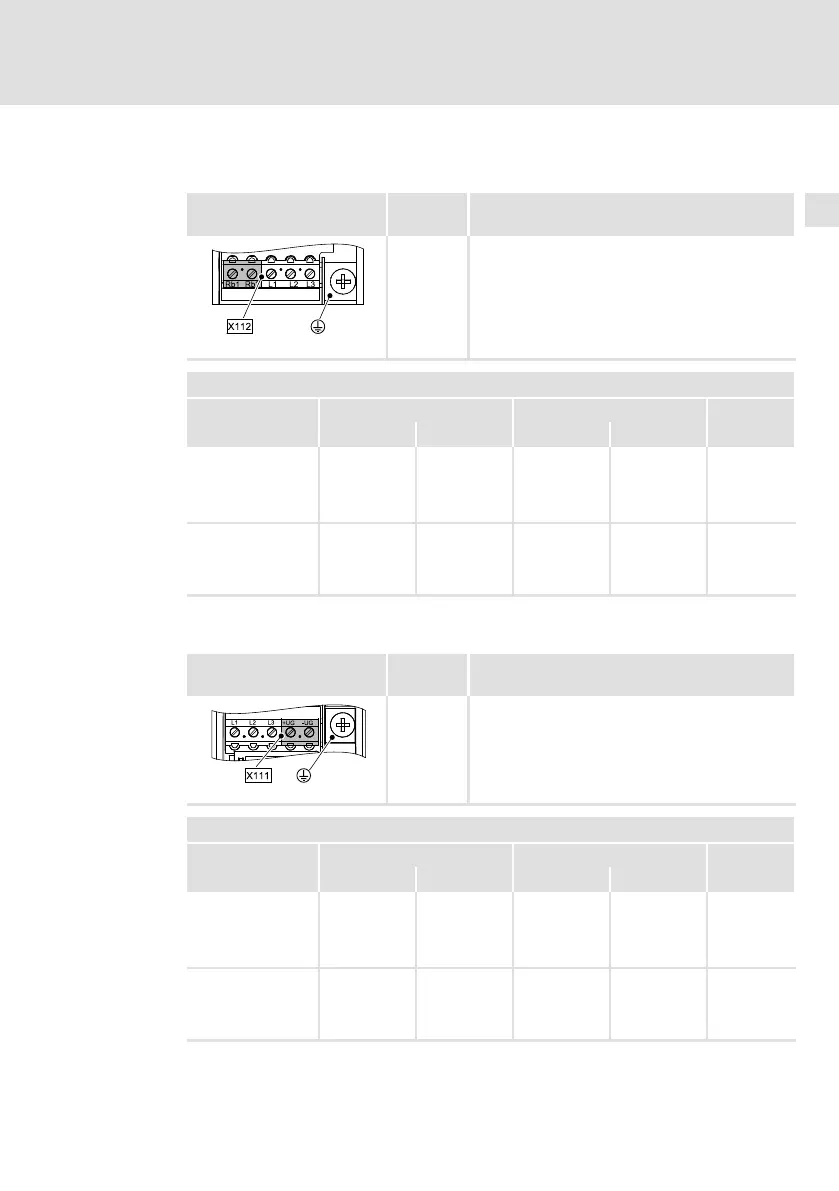

External brake resistor
Terminal X112
(left part)
Labelling Description
Rb1
Rb2
External brake resistor
SSP940X112
Terminal data
Max. conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
Device sizes 1+2:
flexible
with wire end
ferrule
2.5
12 0.5 ... 0.6 4.5 ... 6.2 PZ0
Device size 3:
flexible
with wire end
ferrule
10 6 1.2 ... 1.5 10.6 ... 13.3 PH1
DC bus
Terminal X111
(right part)
Labelling Description
+UG
-UG
Alternative option for DC-bus voltage connection
(compatible to 9300 series)
E94ARNE0244: maximum current I
dc
=50A
SSP940X111
Terminal data
Max. conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
Device sizes 1+2:
flexible
with wire end
ferrule
2.5
12 0.5 ... 0.6 4.5 ... 6.2 PZ0
Device size 3:
flexible
with wire end
ferrule
10 6 1.2 ... 1.5 10.6 ... 13.3 PH1
