System bus (CAN / CAN−AUX) configuration
Setting the CAN node address and baud rate
Settings via DIP switch
8

157
EDBCSXA064 EN 3.2

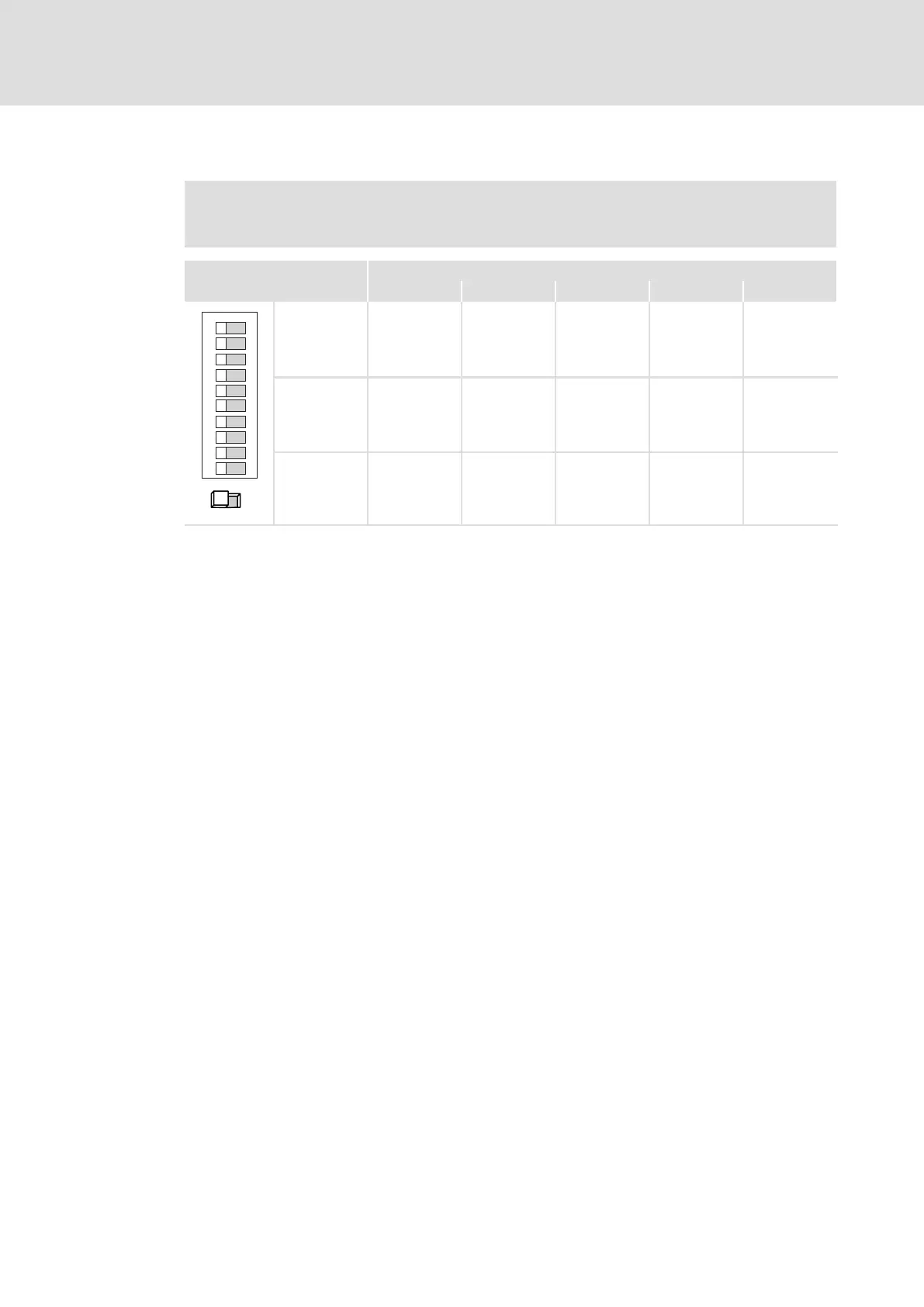

Baud rate setting
 Note!
The baud rate must be set identically for all CAN nodes.
Switch
Baud rate [kbit/s]
1000 500 250 125
50
ONOFF
ON
1
6
2
7
43
8
5
910
8 ON OFF OFF OFF OFF
9 OFF OFF OFF ON ON
10 OFF OFF ON OFF ON
