System modules
AIF2_IO_AutomationInterface (node number 42)
Inputs_AIF2
13
267
EDBCSXA064 EN 3.2
13.3 AIF2_IO_AutomationInterface (node number 42)
13.3.1 Inputs_AIF2
This SB is used as an interface for input signals (e.g. setpoints/actual values) to the
attached fieldbus module (e.g. INTERBUS, PROFIBUS−DP).
The process image is
ƒ created in the cyclic task by means of a fixed set time interval of 10 ms.
ƒ created in an interval task within the time set for this task.
ƒ read at the beginning of the task and written at its end.
Please read the documentation for the connected fieldbus module.
16 Bit
...
16 binary
signals
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
...
16 binary
signals
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
Inputs_AIF2
X1
AIF2_bInB0_b
AIF2_bInB15_b
AIF2_nInW1_a
AIF2_bInB16_b
AIF2_bInB31_b
AIF2_nInW2_a
AIF2_nInW3_a
AIF2_dnInD1_p
AIF2_nInW4_a
ECSXA203

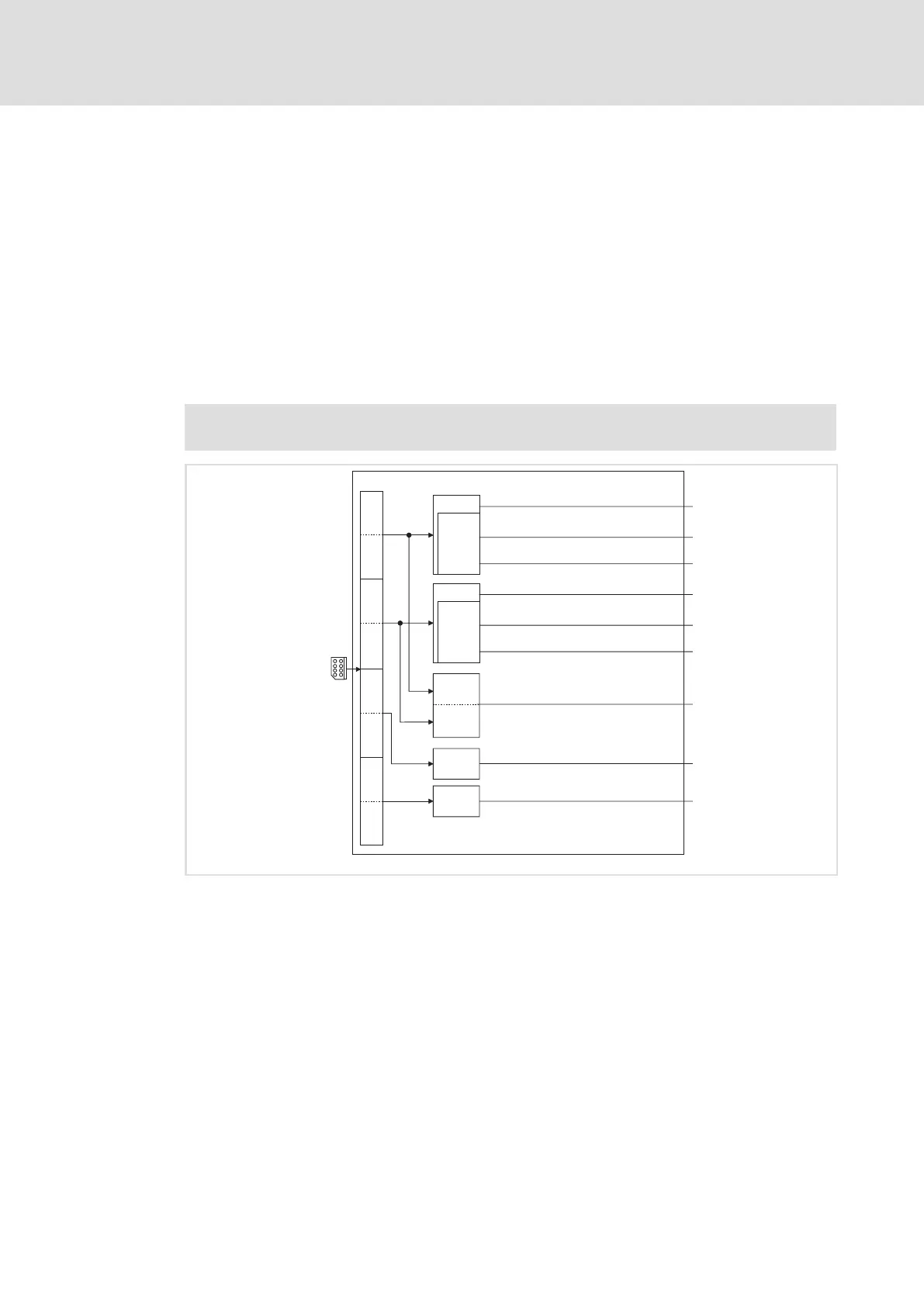

Fig. 13−5 System block "Inputs_AIF2"
