Electrical installation
Wiring of system bus (CAN)
5
92
EDBCSXA064 EN 3.2
System bus(CAN) wiring
ECS_COB004

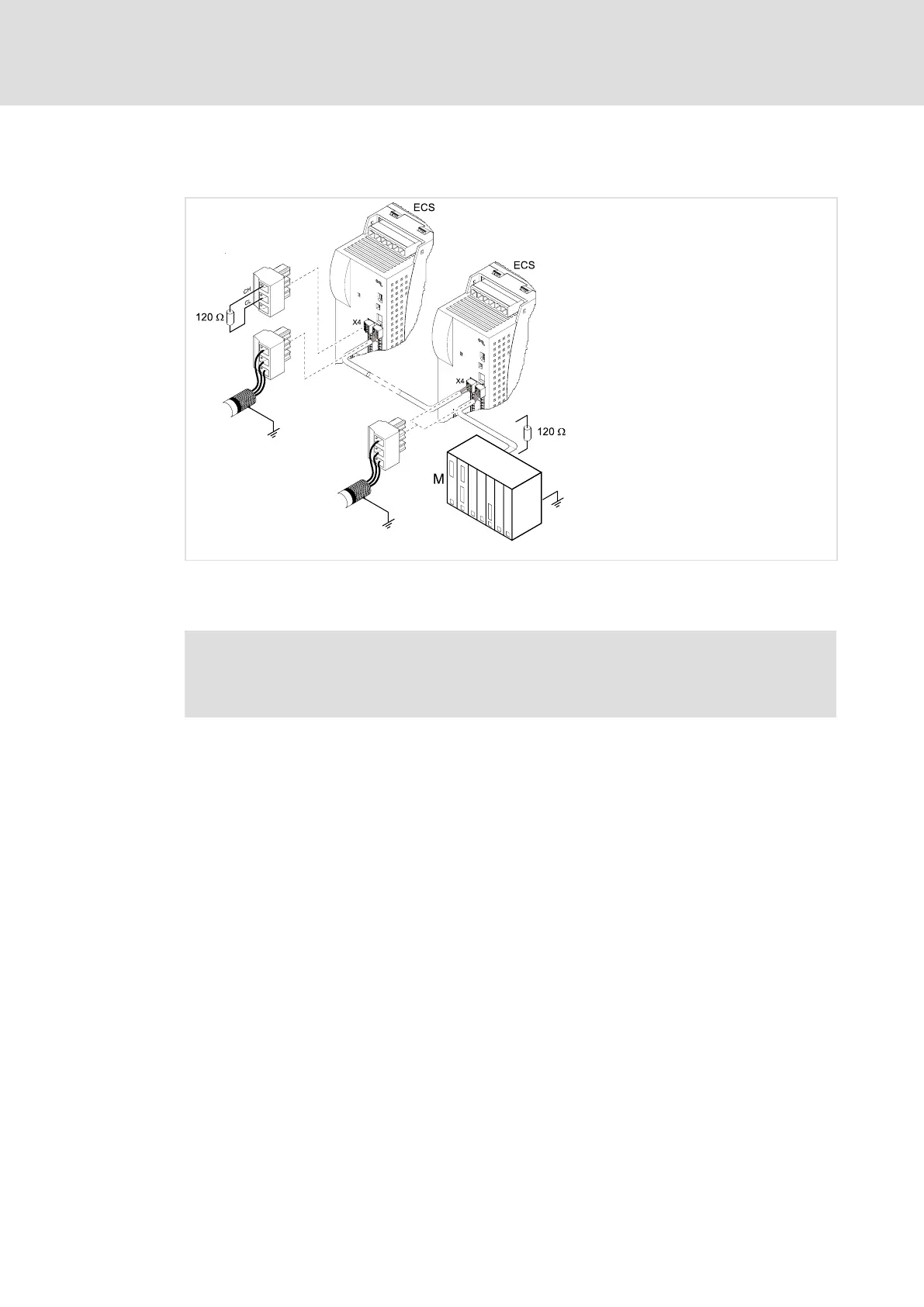

Fig. 5−17 Example: System bus (CAN) wiring via interface X4
ECS ECS axis module
M Master control, e.g. ETC
Note!
Connect one bus terminating resistor (120 W) each to the first and last node of
the system bus (CAN).
