I/O data transfer (implicit messages)
I/O configuration with »RSLogix 5000« version 20 or higher
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

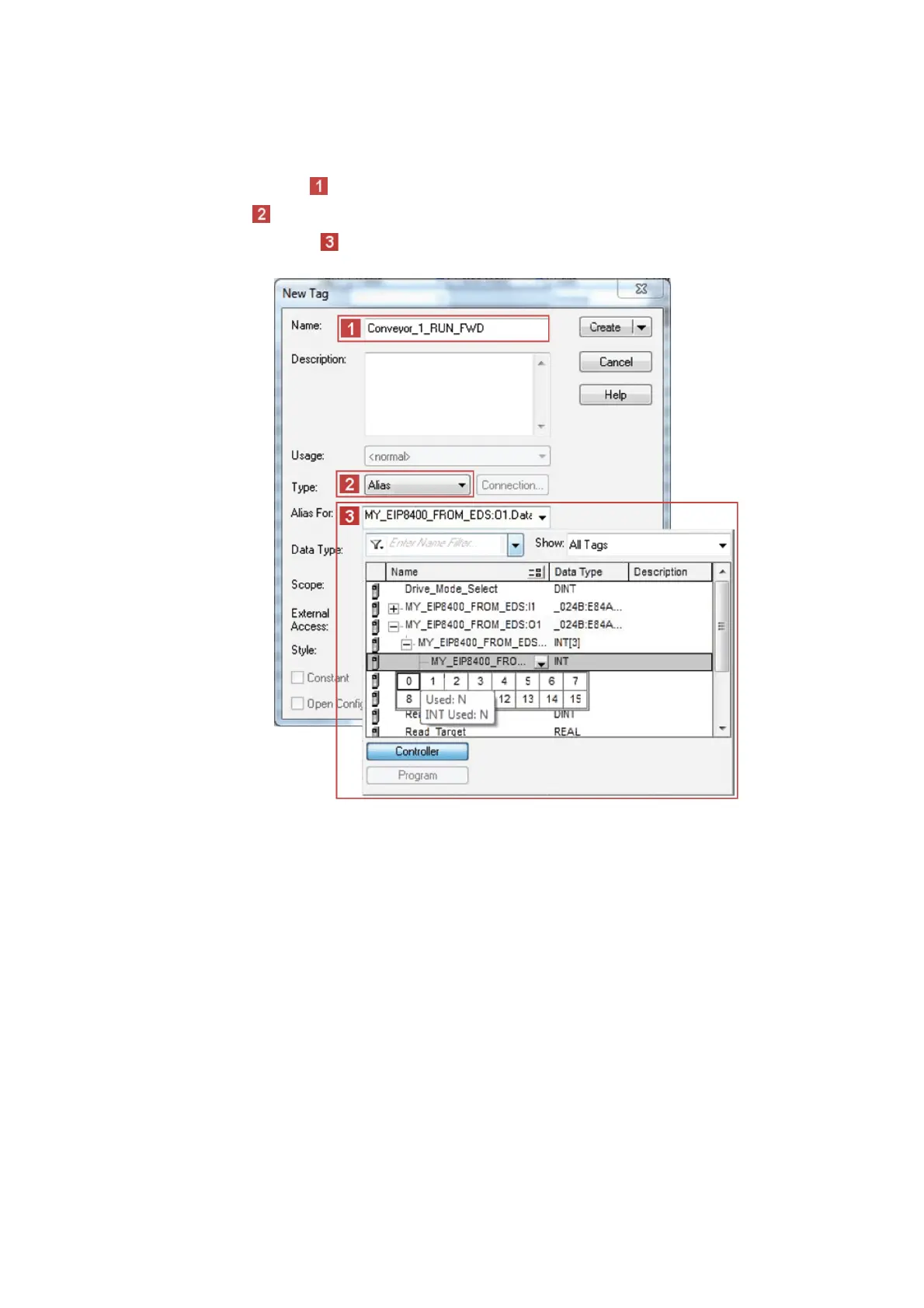

13. Go to the "New Tag" dialog window and ...
•assign a Name for the tag (in the example: "Conveyor_1_RUN_FWD");
•set Type = "Alias";
• select the Alias address which is to be referenced for the alias tag.
(in the example: "MY_EIP8400_FROM_EDS:O1.Data(0).0" (bit ’0’ of byte ’0’)
