I/O data transfer (implicit messages)
I/O configuration with »RSLogix 5000« version 20 or higher
72
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

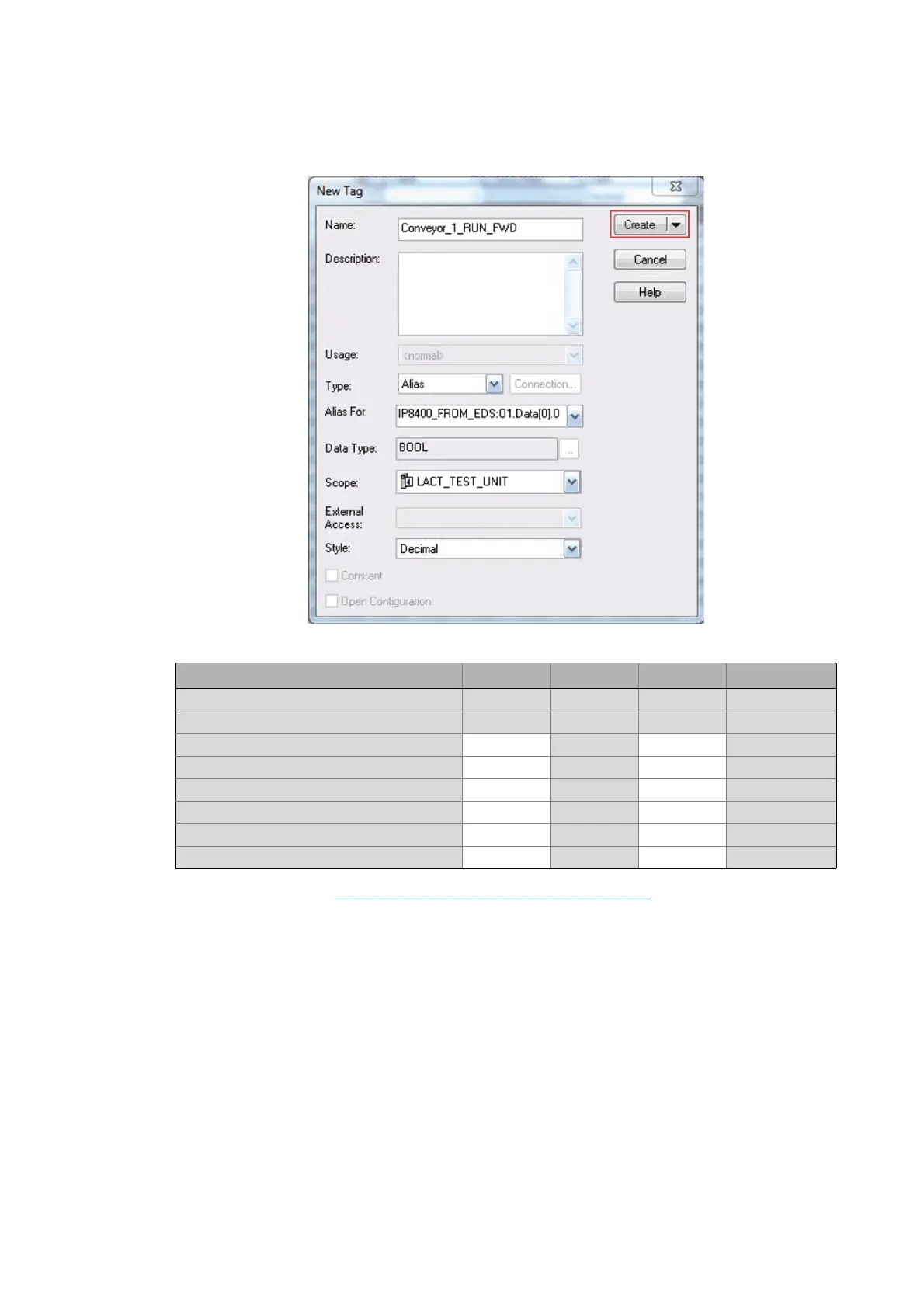

14. Confirm the settings with the Create button.
The alias tag "Conveyor_1_RUN_FWD" is created below the "Controller Tags":
15. The last step is Saving the I/O configuration in »RSLogix 5000«
( 73).
Name Value Force Mask Style Data Type
. . . . . . . . . . . . . . .
[–] MY_EIP8400_FROM_EDS:O1 {. . .} {. . .} _024B:E84AYCE...
[+] MY_EIP8400_FROM_EDS:O1.Data[1] 0 Decimal SINT
[+] MY_EIP8400_FROM_EDS:O1.Data[2] 0 Decimal SINT
[+] MY_EIP8400_FROM_EDS:O1.Data[3] 0 Decimal SINT
[+] MY_EIP8400_FROM_EDS:O1.Data[4] 0 Decimal SINT
[+] MY_EIP8400_FROM_EDS:O1.Data[5] 0 Decimal SINT
Conveyor_1_RUN_FWD 0 Decimal BOOL
