Remove connections
• Since a source can have several targets, there may be some unwanted signal connections.
• Example:
– In the factory setting of the basic configuration C0005 = 1000 (speed control), ASW1-IN1
and AIN2-OUT are connected.
– This connection is not automatically removed by the settings described above! If you do not
want this connection, it must be removed.
+
-
*
/
x/(1-y)
C0600
x
y
ARIT2
ARIT2-OUT
C0602/1
á 200%
C0602/2
ARIT2-IN1
ARIT2-IN2
C0601/1
C0601/2
62
AOUT1
C434/1
+
+
AOUT1-IN
AOUT1-GAIN
AOUT1- OFFSET
C0434/3
C0434/2
C0431
C0433
C0432
3
4
AIN2
+
+
AIN2-OUT
AIN2-GAIN
AIN2-OFFSET
C0409/1
C0409/2
C0407
C0408
C0108/1
C0109/1
C0027/2
C0026/2
ASW1-IN1
C0812/1
1
0
C0812/2
ASW1-SET
ASW1-IN2
ASW1
ASW1-OUT
C0813
C0810/1
C0810/2
C0811FIXED0
FIXED0%
NSET-NADD

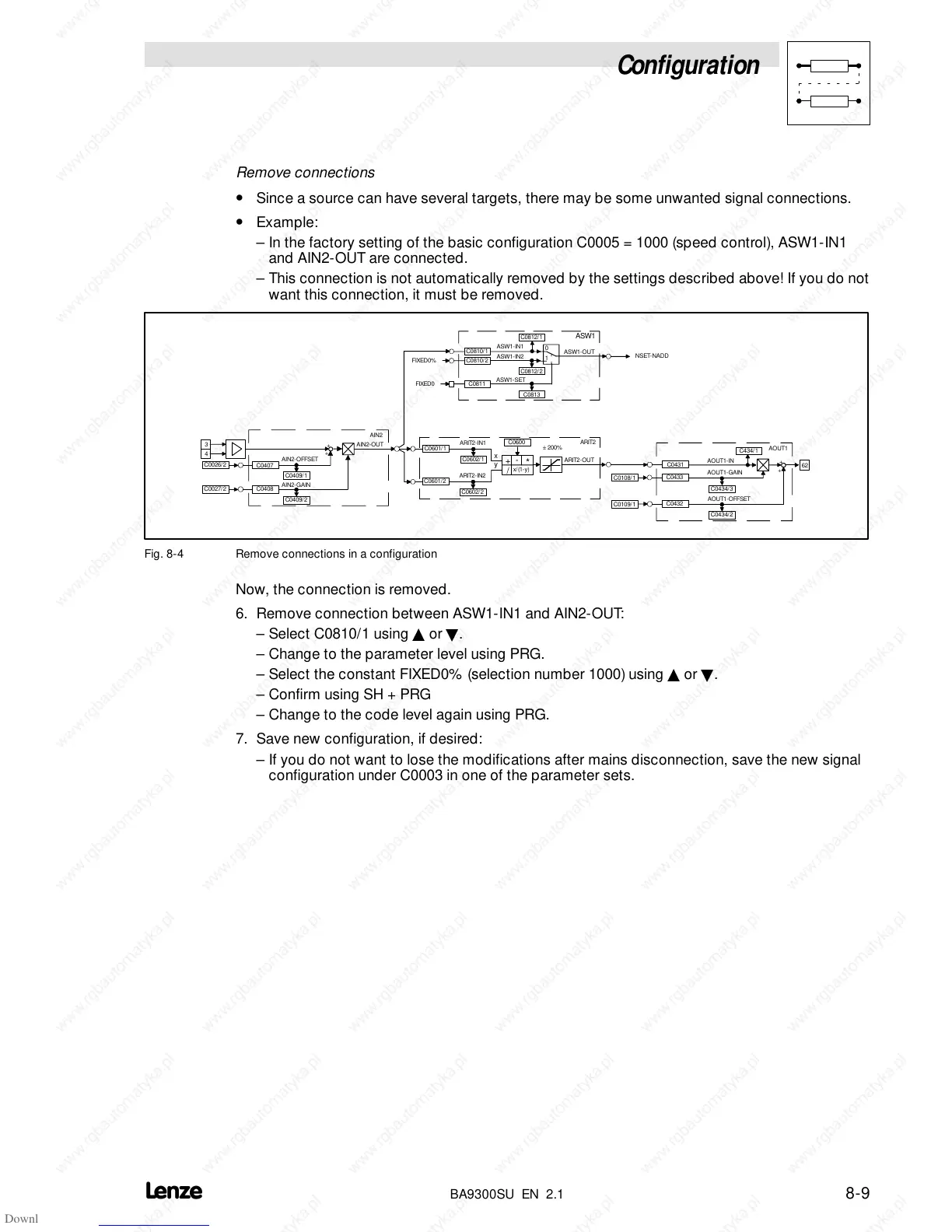

Fig. 8-4 Remove connections in a configuration
Now, the connection is removed.
6. Remove connection between ASW1-IN1 and AIN2-OUT:
– Select C0810/1 using
? or + .
– Change to the parameter level using PRG.
– Select the constant FIXED0% (selection number 1000) using
? or + .
– Confirm using SH + PRG
– Change to the code level again using PRG.
7. Save new configuration, if desired:
– If you do not want to lose the modifications after mains disconnection, save the new signal
configuration under C0003 in one of the parameter sets.
