4.3 Mains connection

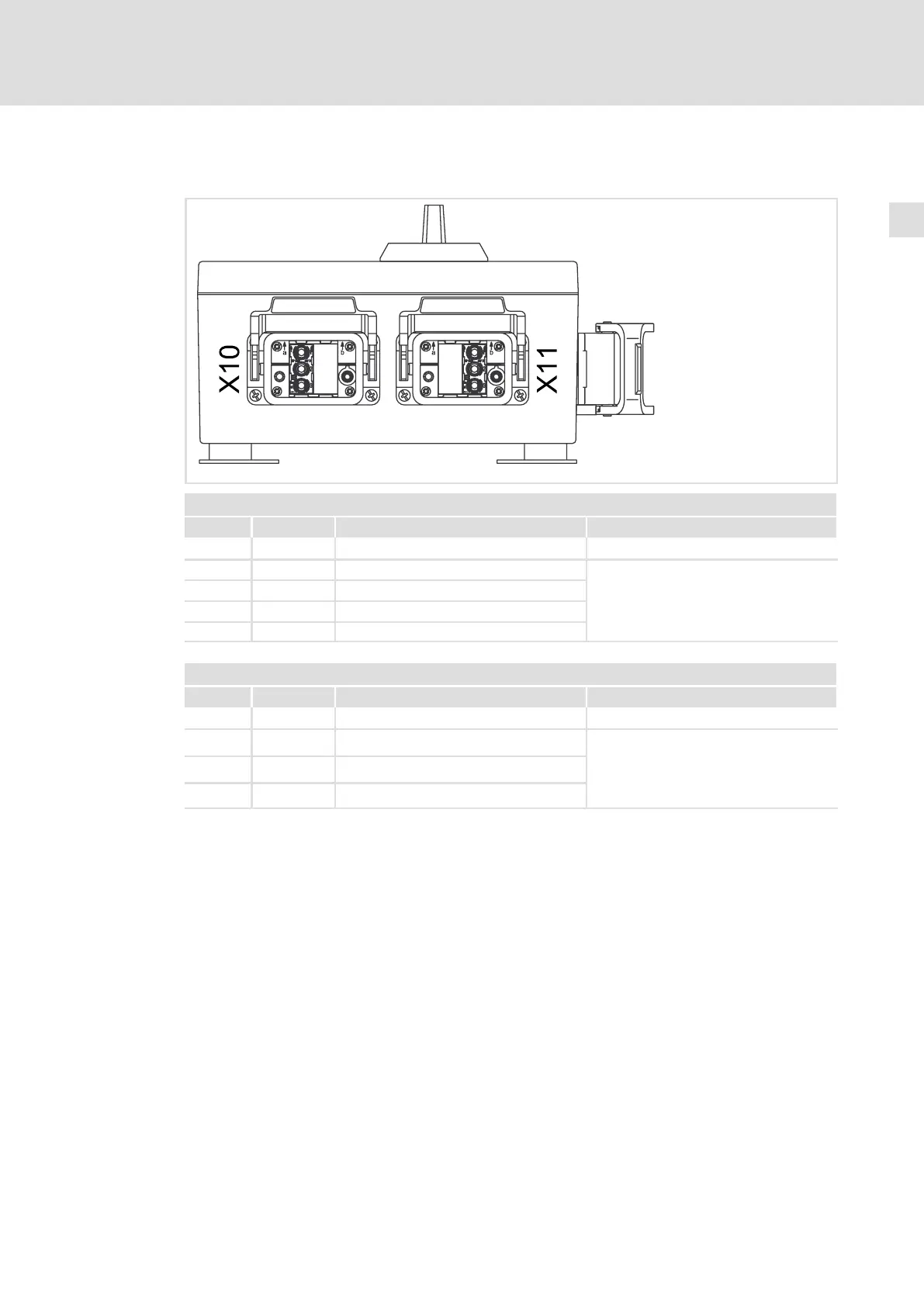

lcu12x_000c
X10 − Mains connection
Pin Connection Description Data
Connector: Pins, Harting HAN−Modular
a1 L1 Phase L1
3/PE AC 320 V − 0% ... 530 V + 0%
a2 L2 Phase L3
a3 L3 Phase L3
+ PE PE conductor
X11 − 24 V DC connection
Pin Connection Description Data
Connector: Pins, Harting HAN−Modular
b1 24 V DC Voltage supply for control electronics
Safely isolated power supply unit
(SELV/PELV)
+24 V DC
(+20 V DC − 0% ... +26.5 V DC + 0%)
Max. 5 A
b2 n. c. Not assigned
b3 GND Reference potential
