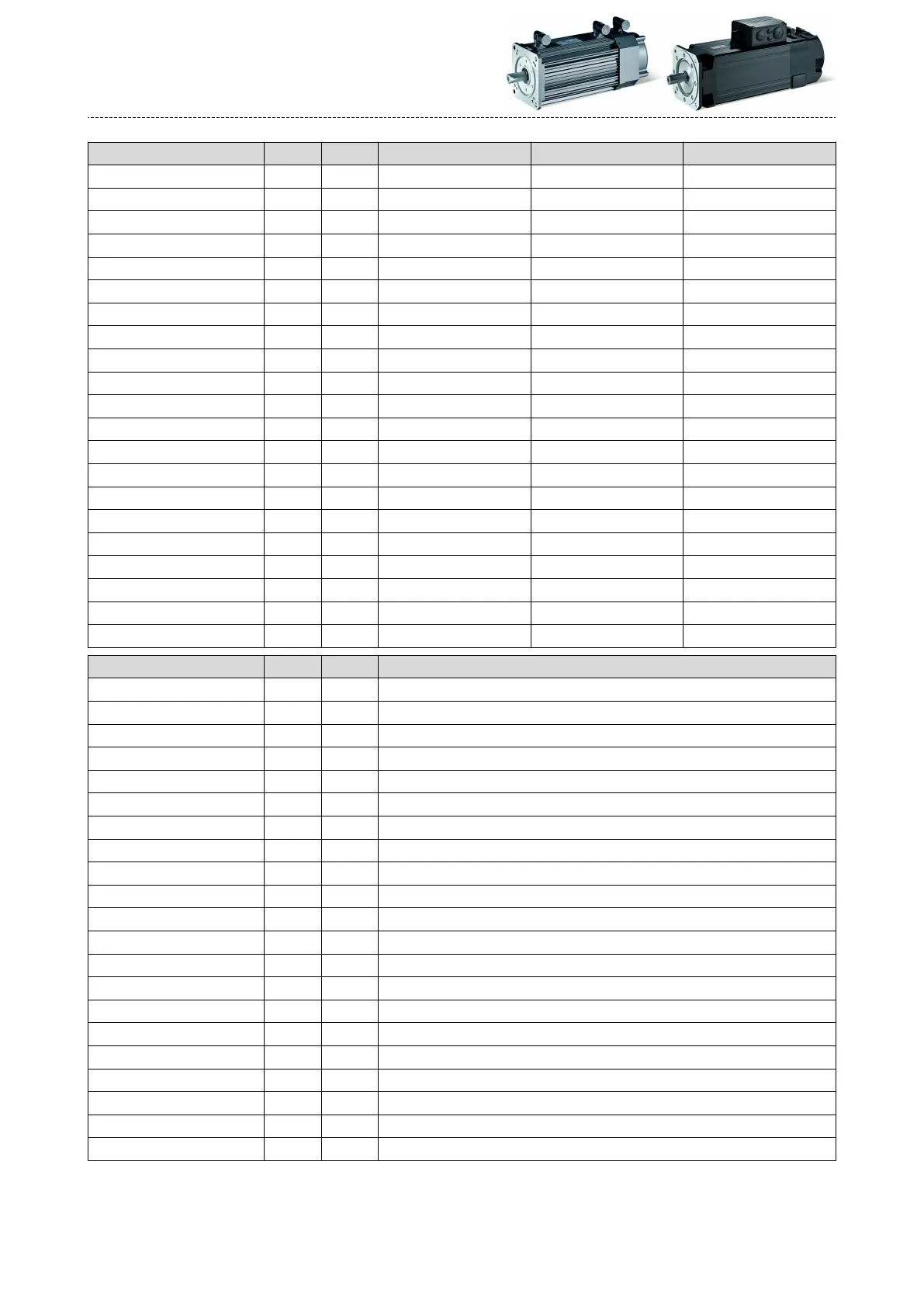

Lenze MCA Series - Page 78

Product name MCA26T05H MCA26T10H MCA26T12H
Standsll torque M
0
Nm 290 290 290
Rated torque M
Rated
Nm 280 260 255
Max. torque M
max.
Nm 1100 1100 1100
Rated speed n
Rated
rpm 550 1030 1200
Max. speed n
max.
rpm 5500 5500 5500
Rated power P
Rated
kW 16.1 28.0 32.0
standsll current I
0
A 44.0 78.0 101
Rated current I
Rated
A 42.4 69.6 83.3
Max. current I
max.
A 170 278 333
Rated voltage V
N, AC
V 350 350 350
Rated frequency f
rated
Hz 20 36 41
Moment of inera J kgcm² 1335 1335 1335
Eciency η
100 %
0.810 0.870 0.870
Stator terminal resistance R
UV 20°C
Ω 0.59 0.20 0.15
Stator terminal resistance R
UV 150°C
Ω 0.89 0.30 0.23
Mutual inductance L
H
mH 72.1 71.4 18.6
Stator leakage inductance L
1σ
mH 3.11 3.17 0.78
Rotor leakage inductance L
2σ
mH 5.08 5.14 1.30
Stator resistance R
1 UV 20°C
Ω 0.29 0.29 0.08
Rotor resistance R
2 UV 20°C
Ω 0.25 0.25 0.06
Mass m kg 194 194 194
Product name MCA26T22H
Standsll torque M
0
Nm 290
Rated torque M
Rated
Nm 230
Max. torque M
max.
Nm 1100
Rated speed n
Rated
rpm 2235
Max. speed n
max.
rpm 5500
Rated power P
Rated
kW 53.8
standsll current I
0
A 160
Rated current I
Rated
A 127
Max. current I
max.
A 507
Rated voltage V
N, AC
V 340
Rated frequency f
rated
Hz 76
Moment of inera J kgcm² 1335
Eciency η
100 %
0.920
Stator terminal resistance R
UV 20°C
Ω 0.05
Stator terminal resistance R
UV 150°C
Ω 0.08
Mutual inductance L
H
mH 20.2
Stator leakage inductance L
1σ
mH 0.78
Rotor leakage inductance L
2σ
mH 1.30
Stator resistance R
1 UV 20°C
Ω 0.08
Rotor resistance R
2 UV 20°C
Ω 0.06
Mass m kg 194
Technical data
Rated data
Inverter mains connecon 400 V, Forced venlated motors, IP23s
78
