Mechanical installation
Spring−applied brakes

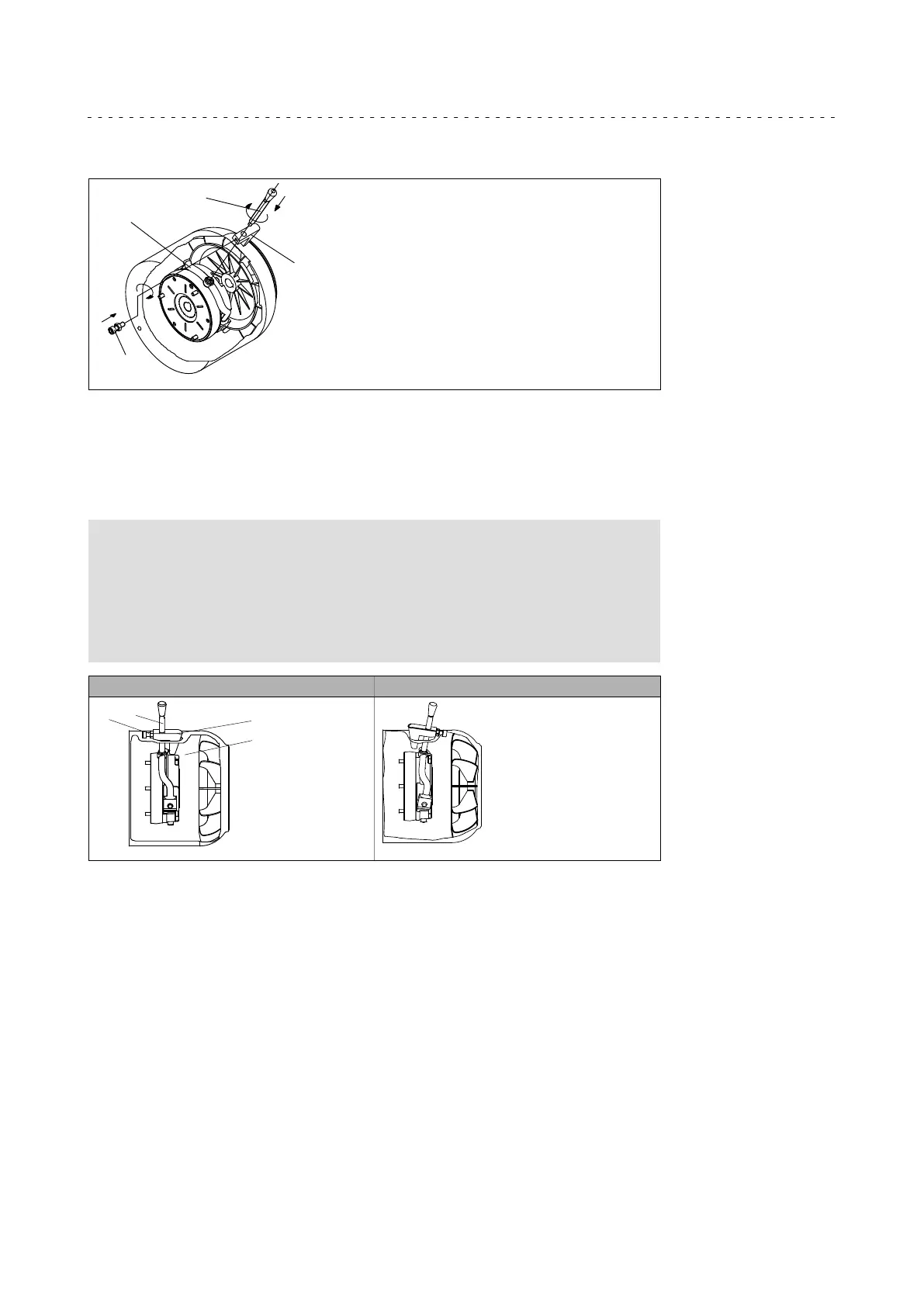

Locking of the manual release
5
26
Lenze ¯ BA 33.0005 ¯ 5.0
Mounting
2
1
3
4
GT−GXX−014.iso/dms
Cheese head screw with nut
Terminal block
Manual release lever with knob
Manual release shackle (brake)
Handling
Stop!
¯ Lock the manual release only for service work!
¯ The manual release must not be locked during operation, otherwise
the brake could be damaged!
¯ Always secure the terminal block against loosening in every position
with cheese head screw and nut!
Brake not released / operating position Brake released / service position
GT−GXX−015.iso/dms GT−GXX−016.iso/dms
Cheese head screw with nut
Terminal block
Manual release lever with knob
Fan cover
