Maintenance/repair
Installation of a spring−applied brake
Installation of the brake
8
46
Lenze ¯ BA 33.0005 ¯ 5.0
8.4.2 Installation of the brake
Stop!
¯ Check the state of the end shield (15). It must be free from oil and
grease.
3
4
15
K14.0502/8

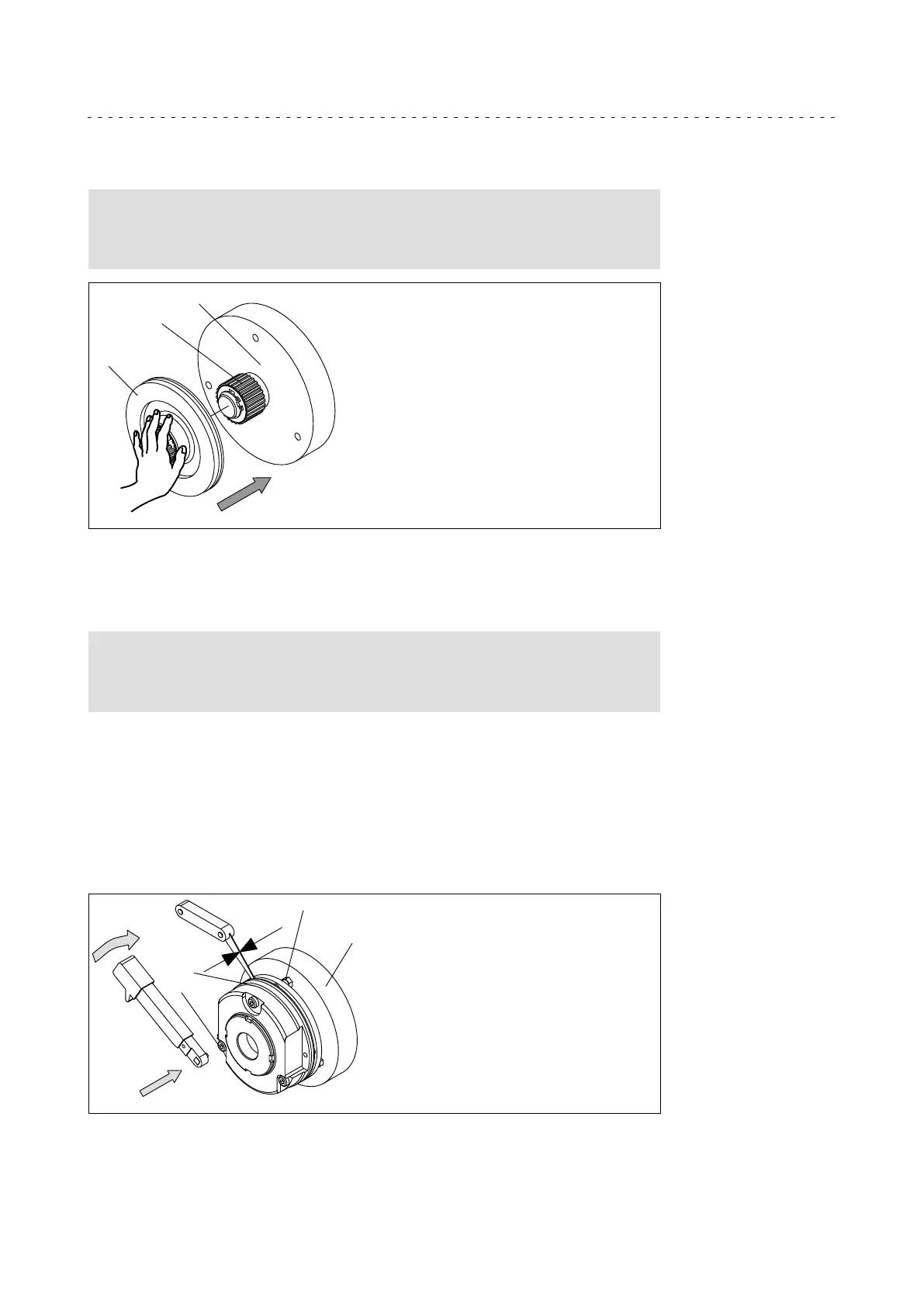

Fig. 4 Rotor mounting
3 Rotor 4 Hub 15 End shield
1. Push the rotor (3) onto the hub (4) and check whether it can be moved by hand
(Fig. 4).
Stop!
Please note the following for the version "brake with shaft sealing ring in
torque adjustment ring":
2. Lightly lubricate the lip of the shaft seal with grease.
3. When assembling the stator (1), push the shaft sealing ring carefully over the
shaft.
– The shaft should be located concentrically to the shaft seal.
4. Use the screws (10) to mount the stator (7) completely to the end shield (15)
(Fig. 5).
– Tighten the screws evenly, tightening torque ( 45).
9
1
10
15
KL458−012−a
Fig. 5 Stator mounting
1 Stator 9 Sleeve bolt ¬ s
Lrated
10 Cheese head screw 15 End shield
