Lenze MDEMAXX063-42C1C User Manual

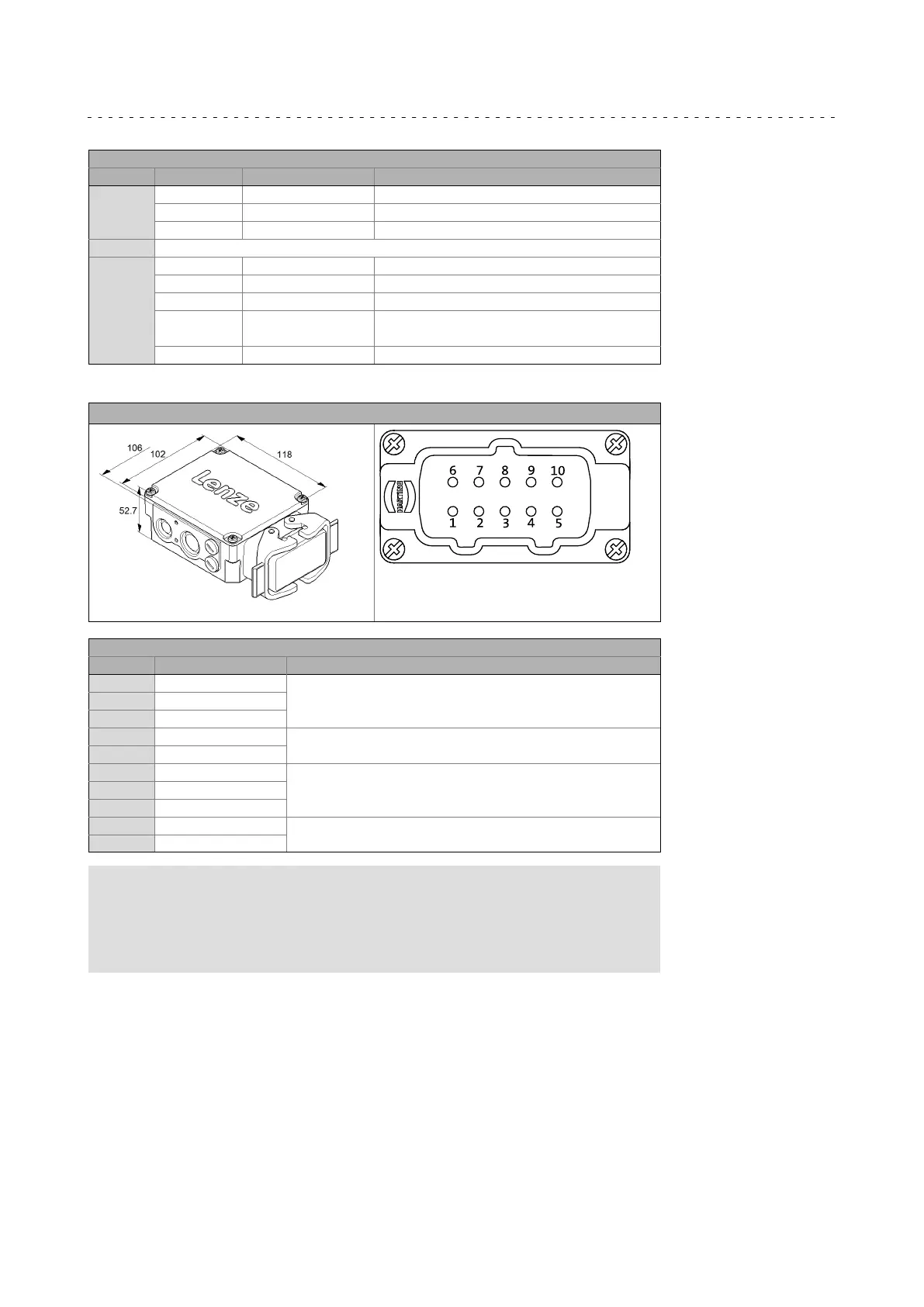

Electrical installation
Terminal box HAN connectors
6
36
Lenze ¯ BA 33.0005 ¯ 5.0
Terminal box
Module Contact Name Meaning
a 1 U1 Terminal board
2 V1 Terminal board
3 W1 Terminal board
b Blind module
c 1 +KTY / PTC / TCO Thermal sensor
2 + / AC Brake
3 − / AC Brake
4 Switching contact Rectifier
5
6 −KTY / PTC / TCO Thermal sensor
Contact pin HAN 10E
HAN−GTM−007.iso HAN−GTM−004.iso
Terminal box
Contact Name Meaning
1 U1 Terminal board
2 V1
3 W1
4 + / AC Holding brake
5 − / AC
6 W2 Terminal board
7 U2
8 V2
9 +KTY / PTC / TCO Thermal sensor
10 −KTY / PTC / TCO
 Note!
Carry out the wiring in or in the counter plug:
¯  − wiring: 6−7−8
¯  − wiring: 1−6/2−7/3−8
