Electrical installation
Voltage supply
6
EDK82ZAFPC−001 DE/EN/FR 7.0
55
H2_SpgVersorgg−Leg_Mindestverdraht
External voltage supply
Note!
In the case of an external voltage supply and for greater distances between the
control cabinets, always use a separate power supply unit (SELV/PELV) that is
safely separated in accordance with EN 61800−5−1 in each control cabinet.
External voltage supply of the communication module is required if communication via the
fieldbus is to be maintained even when the power supply of the standard device fails.
Note!
With external voltage supply of the function module, the active bus
terminating resistor is fed independently of the operation of the standard
device. In this way, the bus system remains active even when the standard
device is switched off or fails.

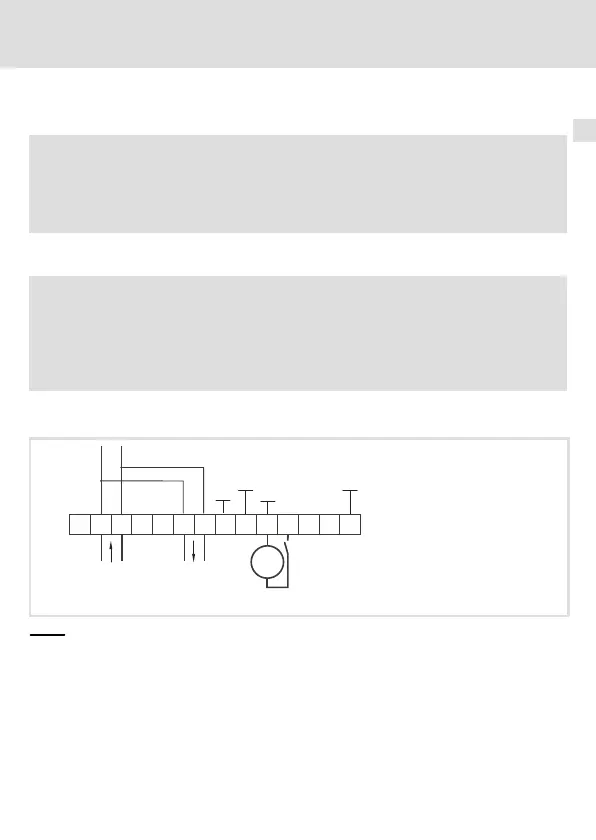

External voltage supply with one voltage source for
ƒ X3/28 (controller inhibit (CINH))
GND1
GND1
B
CN
7
20 59
X3
+5V
+20V
AVP
2839
7
BA
T/R(A) T/R(B) T/R(A) T/R(B)
GND2
_
+
40
GND3
+
E82ZAFP002
The min. wiring requirements for operation
