Lenze PROFIBUS E82ZAFPC001 - Activating the bus terminating resistor

7 Commissioning
Activating the bus terminating resistor
EDK82ZAFPC−001 DE/EN/FR 7.0
64

H2 BusabschlussAktivieren−DIP−Schalter_BusAbschl_TAB

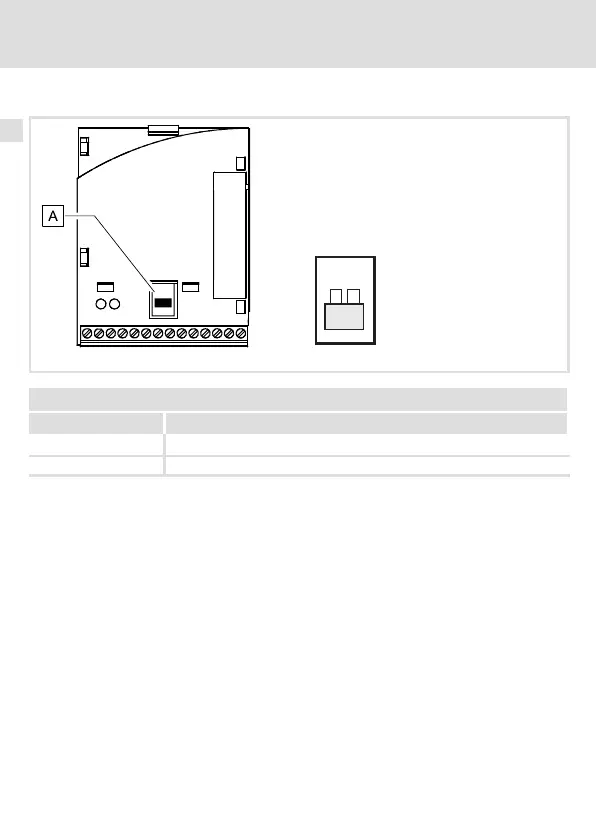

Activating the bus terminating resistor
ON
E82ZAFL011B / E82ZAFP010
DIP switches 
Switch position Function
OFF Bus terminating resistor not active.
ON Bus terminating resistor active.
