1.2.2 Function mode of the safety modules
C00214
The code C00214 must comply with the plug−in safety module type so that the controller
is able to operate.
Disconnecting paths
The transmission of the pulse width modulation is safely (dis−)connected by the safety
module. Hence the drivers do not create a rotating field. The motor is safely switched to
torqueless operation (STO).
M
SMx
PWM
µC
PC
3x
3x
Xx
SSP94SM320

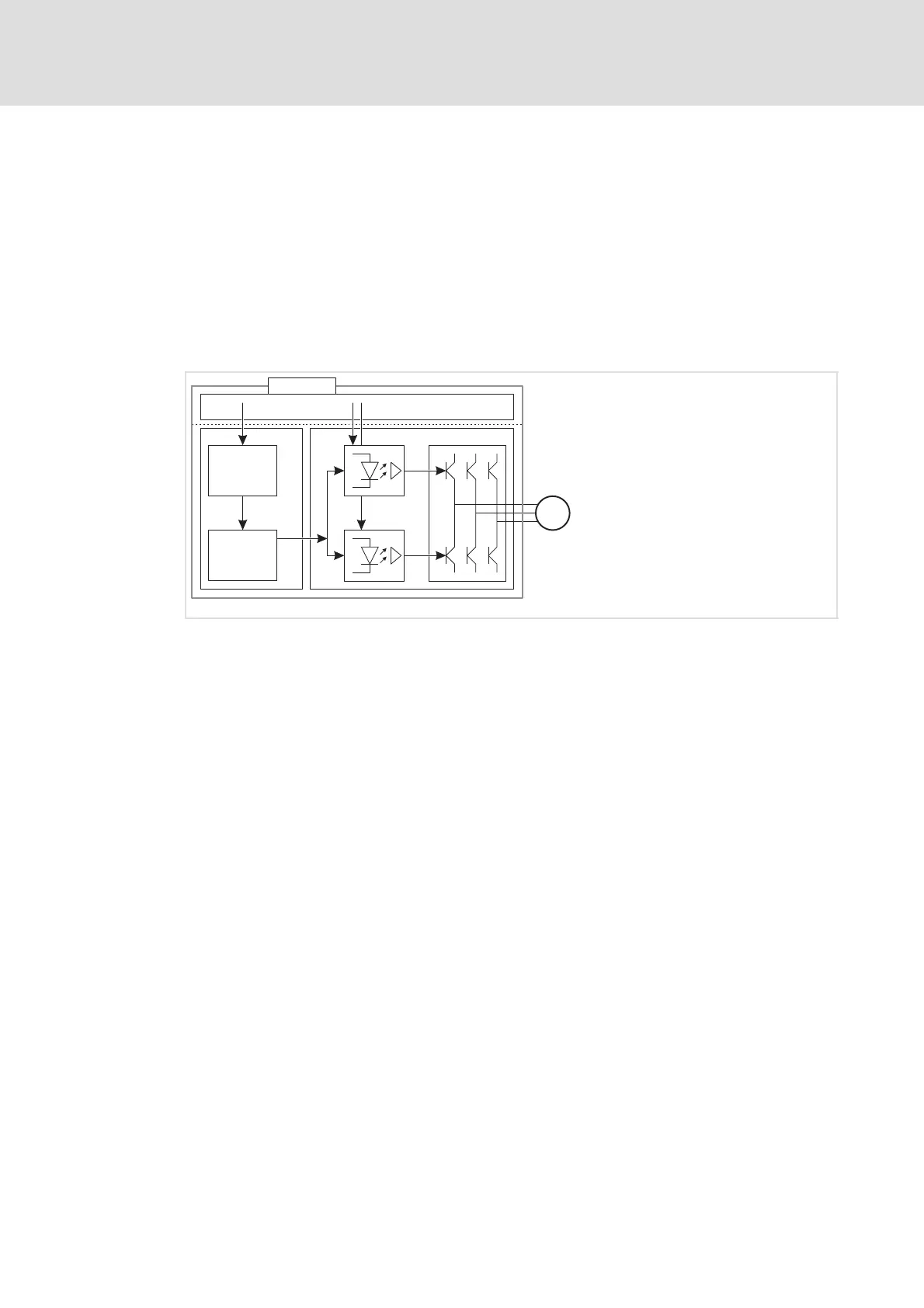

Fig. 1−1 Disconnecting paths of the safety modules
SMx Safety module
xx Input / output terminal
C Control section
mC Microcontroller
PWM Pulse width modulation
P Power section
M Motor
Safety status
When the controller is switched off by the safety module, the controller switches to the
"Safe torque off"device state.
ƒ "Controller in STO state" is entered into the logbook (0x00750003).
ƒ "Safe torque off active" is displayed in C00183.
