Leslie 2102 - Multiple Horn-Units to Stationary-Units Connection


































































































ROT
BASS
LEVEL
HORN
LEVEL

































































































Leslie 11-pin “Y” Cable (optional)
ROT
BASS
LEVEL
HORN
LEVEL

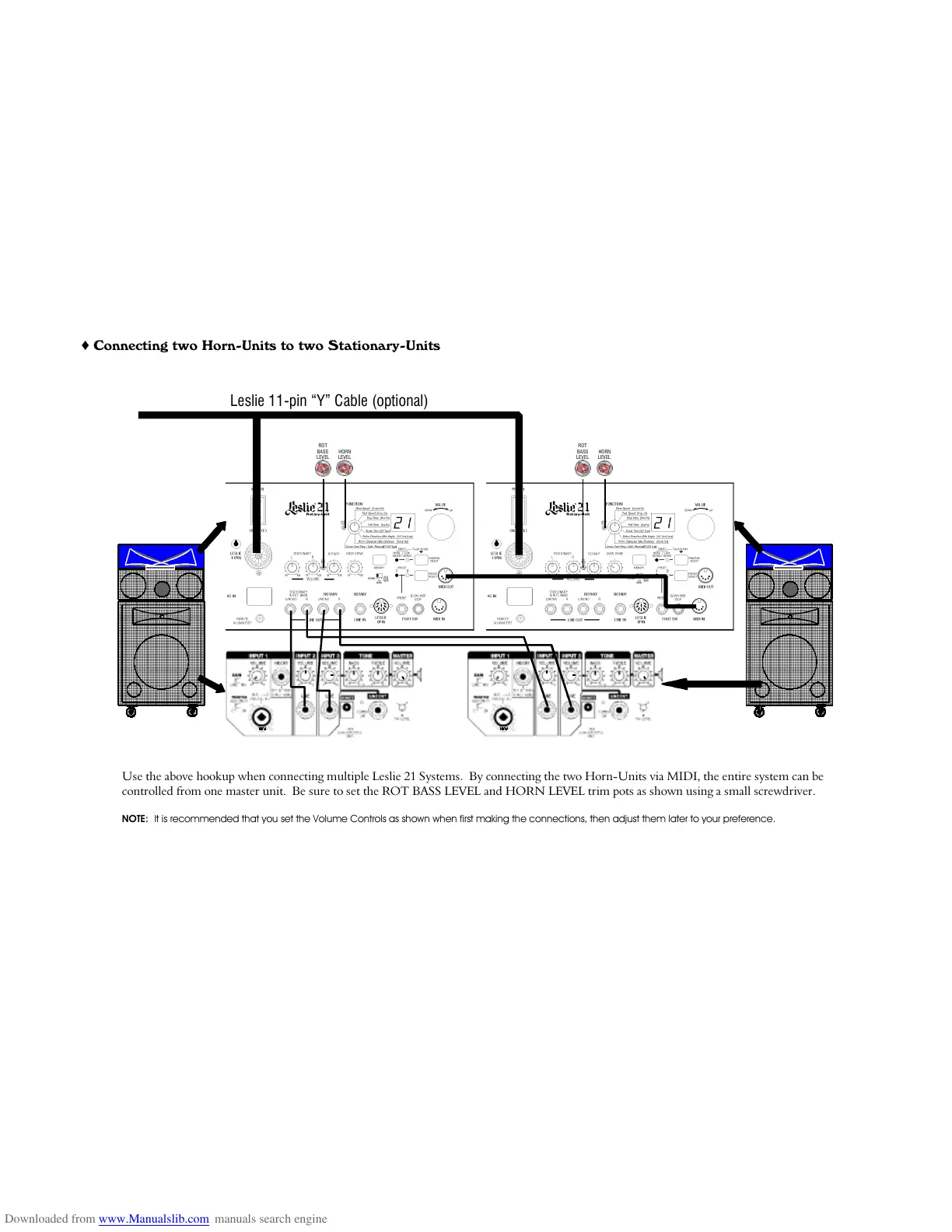

Ë Connecting two Horn-Units to two Stationary-Units
Use the above hookup when connecting multiple Leslie 21 Systems. By connecting the two Horn-Units via MIDI, the entire system can be
controlled from one master unit. Be sure to set the ROT BASS LEVEL and HORN LEVEL trim pots as shown using a small screwdriver.
NOTE: It is recommended that you set the Volume Controls as shown when first making the connections, then adjust them later to your preference.
