2
Pre-Treatment - First Steps
10
PB1
2021-10-25
S023735
WARNING
Always wear the applicable protective safety equipment when you work with
batteries. Batteries contain poisonous and corrosive acid that can cause body
injuries.

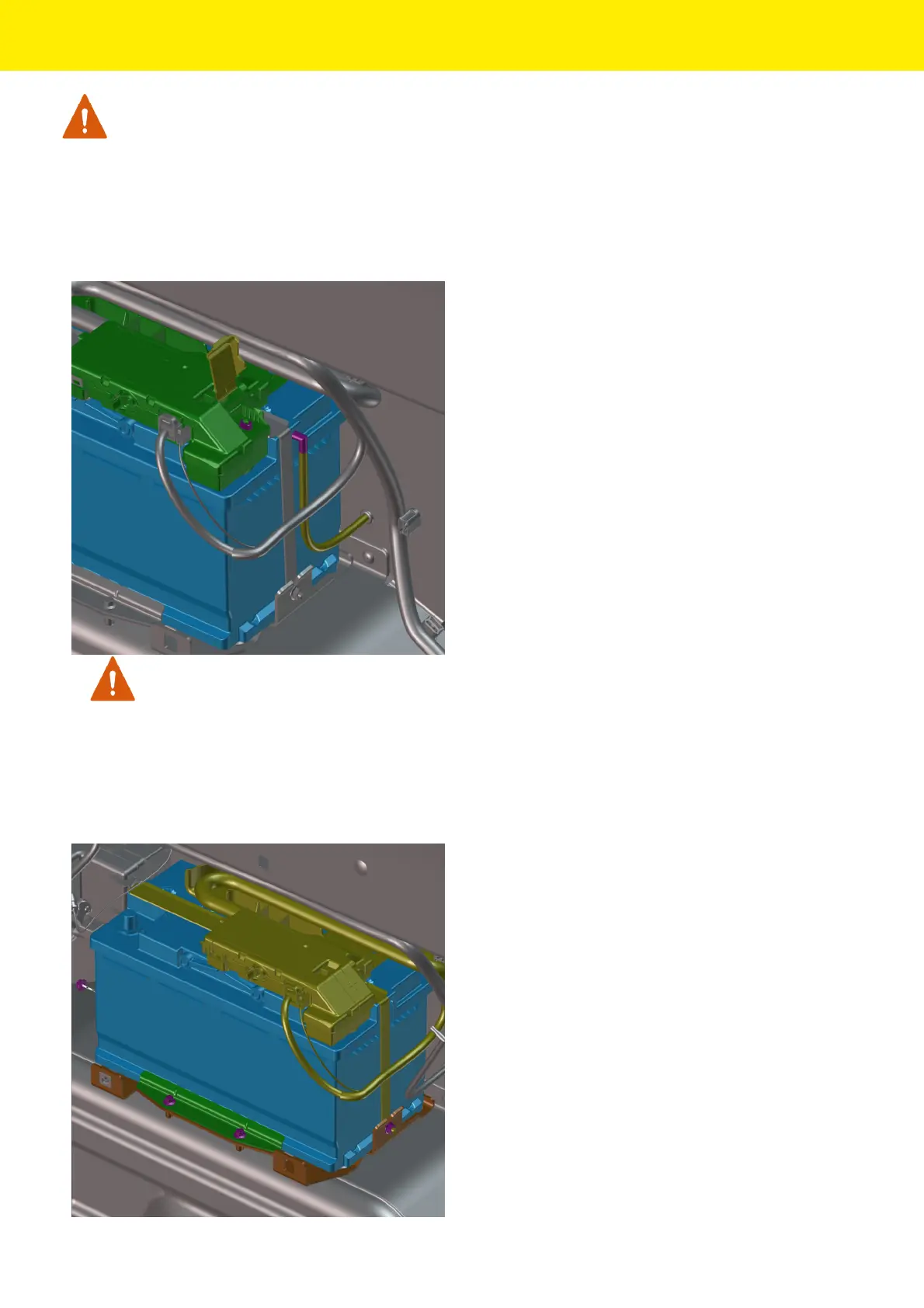

1. Release the pipe - vent from the battery - 12V. Open the access cover. Loosen the fastener
for the battery - 12V positive terminal.
2.
WARNING
This item is heavy. To decrease the risk of injury always lift heavy
components correctly, or use the applicable equipment to move and attach
heavy components.
Remove the four fasteners. Remove the lower bracket. Lift the fuse box - 12V battery and
remove the battery - 12V.
