Pre-Treatment - First Steps
12
PB1
2021-10-25
S023735
2. Remove the exhaust downpipe and the heat shield exhaust - front.

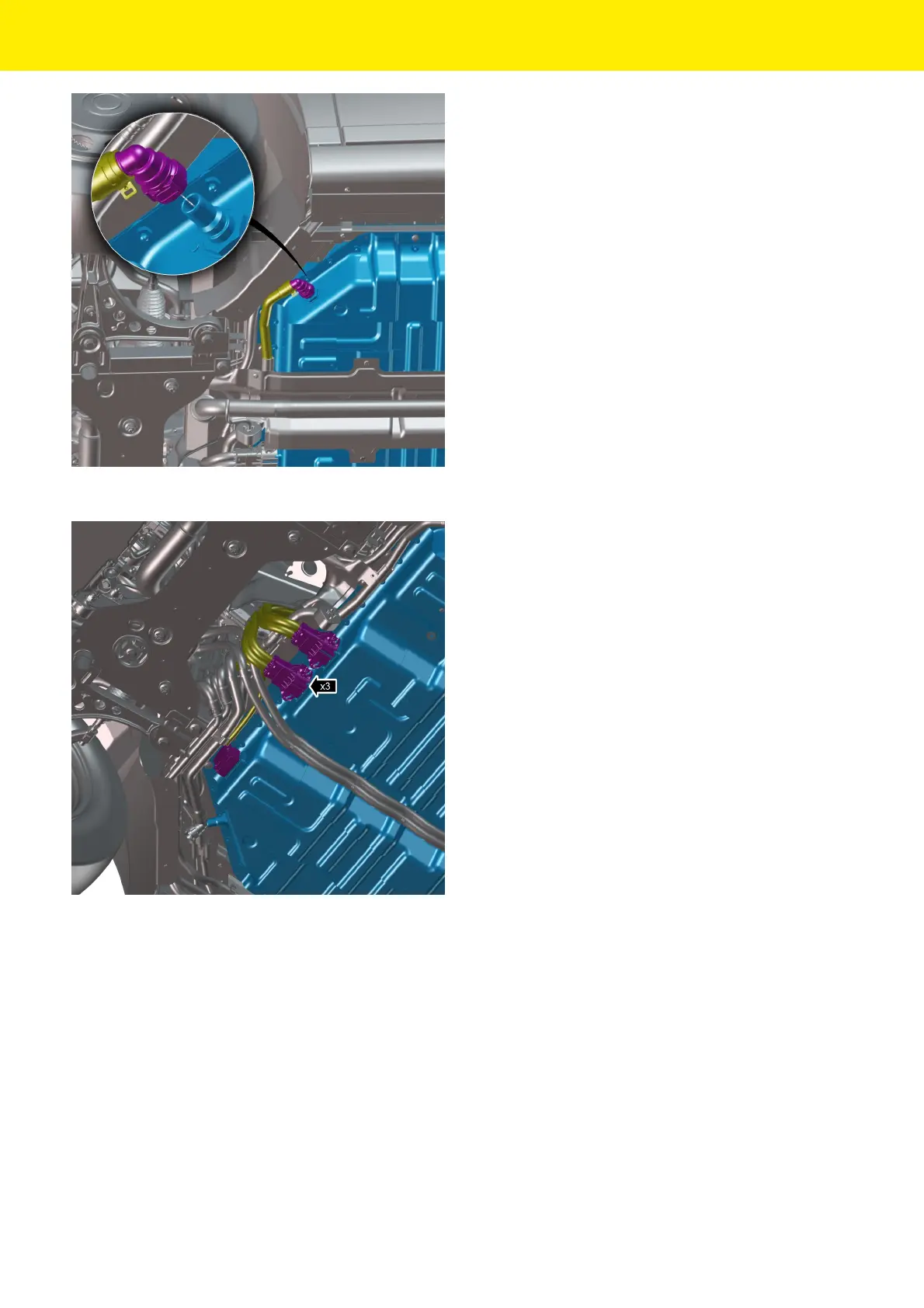

3. Disconnect the three electrical connectors from the front of the battery - high voltage.
4. Disconnect the two electrical connectors from the rear of the battery - high voltage.
For a vehicle with a secondary charger - high voltage - on board only: Disconnect the
electrical connector from the rear of the battery - high voltage.
For a vehicle with CHAdeMO only: Disconnect the electrical connector from the rear of the
battery - high voltage.
