Pre-Treatment
3
S023735 PB1
2021-10-25
25

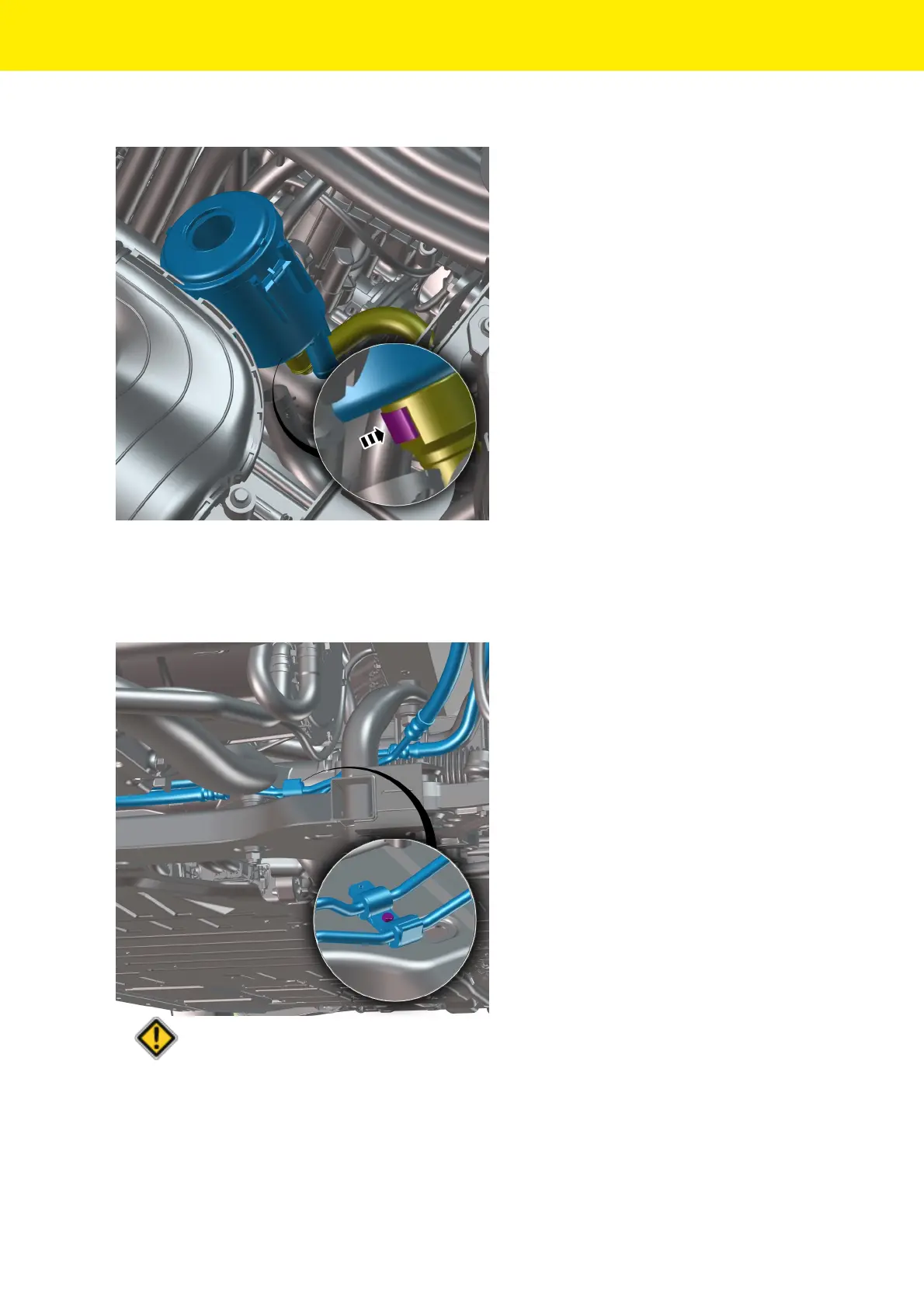

3. Push in the tab to release the hose - power steering low pressure and disconnect the hose -
power steering low pressure from the reservoir - power steering fluid.
4. Remove the undertray - front.
5. Remove the left front liner - wheel arch - front.
6. Remove the right front wheel.
7. Remove the fastener from the hose - power steering high and low pressure assembly and
the subframe - front.
8.
CAUTION
Prepare to collect the released fluid.
Disconnect the hose - power steering high and low pressure assembly from the hose -
power steering low pressure.
