FCS-0071 User’s Manual
21
21

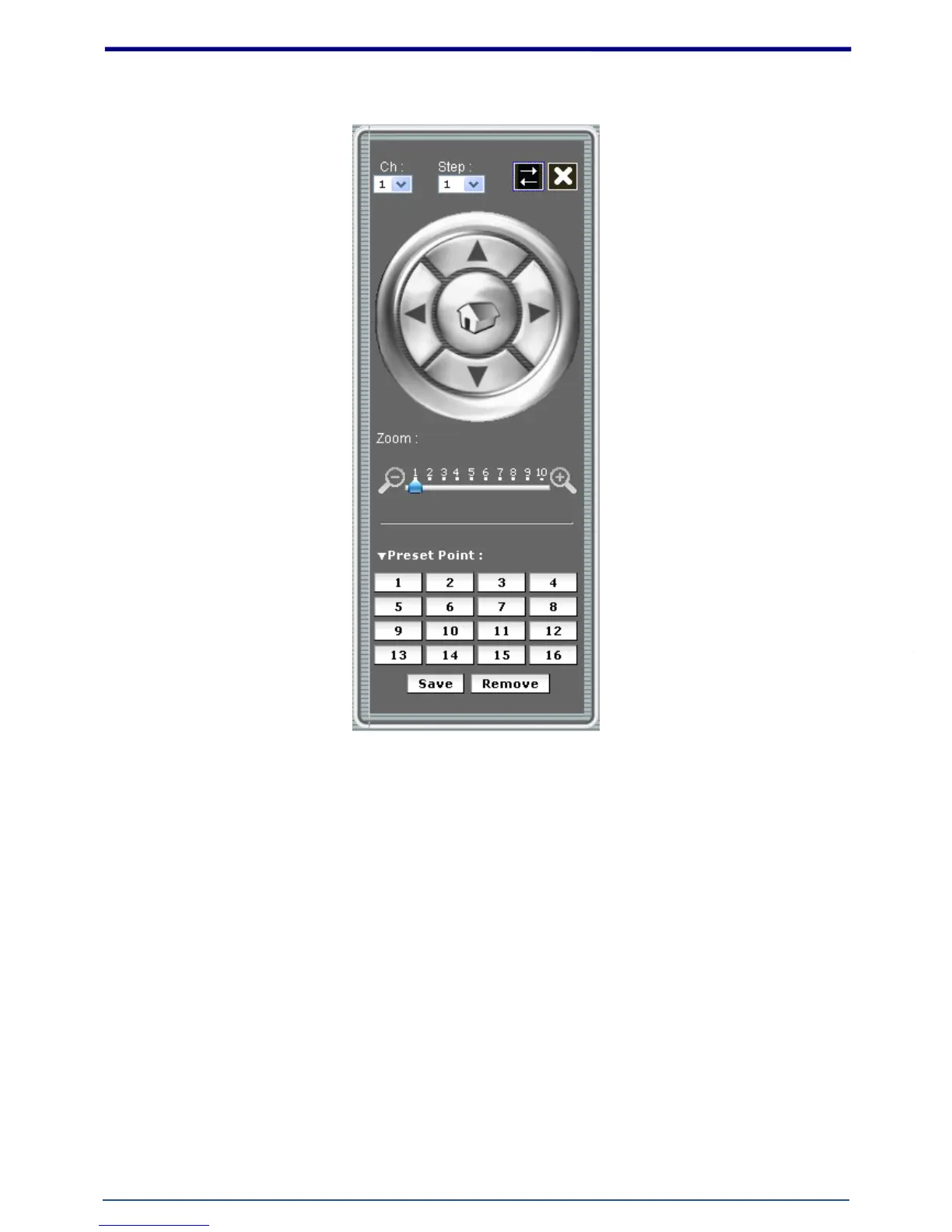

Triple & Quad with source & Double view PTZ control panel:
1. Ch:Select the channel. (1~4) & (2~4)
2. Step:Setting the speed of Pan/Tilt function. (1~10)
3. Pan Tilt Arrow:Click to control Pan/Tilt function.
4. Zoom:Digital zoom in/out. (1~10)
5. Move the control panel.
6. Close the control panel.
7. List of preset points. (1~16)
1
2
3
4
5
6
7
