Network Camera User’s Manual
23/62

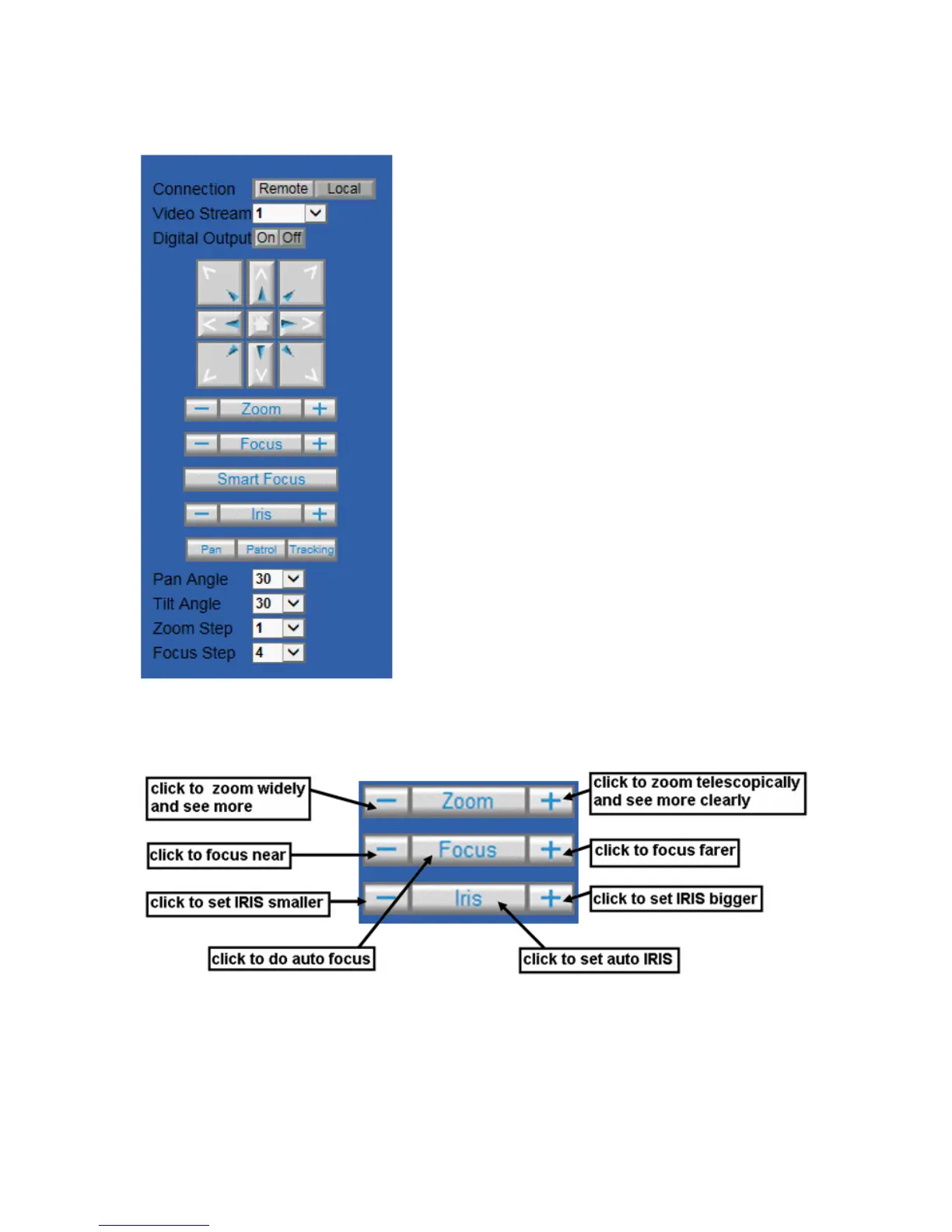

Pan/Tilt/Zoom & connection control buttons:
1. “Connection” User can choose Remote or Local
mode for best connection quality.
Proposal: Internet environment, switch Remote
mode.
2. “Video Stream” User can choose stream1 or
stream2.
3. “Digital Output” Clicking on the ―On‖ or ―Off‖
button turns the digital output to either on or off
status.
4. “The direction buttons are” ―Left‖, ―Right‖, ―Up‖,
―Down‖, ―Cross Angles‖, and ―Home‖. Camera
returns to center when click ―Home‖ button
5. “Pan Angle” User can choose the angles when
the camera moves left and right each time.
6. “Tilt Angle” User can choose the angles when
the camera moves up and down each time.
7. “Iris” Adjust the iris size
8. “Pan” The camera will move from right side to left
side continuously when click the button.
9. “Patrol” The button directs the camera to patrol
among the preset positions in the patrol list, which
can be modified on the “Camera control page”. The
cycle of patrol is from 1 to Unlimit.
10. “Video Tracking” is able to track dynamic
objects within screen video.
11.“Focus/ Smart Focus” Screen auto focus.
12.”3D Auto location” Press the left key of the
mouse, and pull and choose a certain area in the picture in diagonal direction, can
enlarge this area, and put this area in the middle position of picture of controlling.
CCD control buttons:
The set of the buttons is for control Focus, Iris and Zoom.
