6

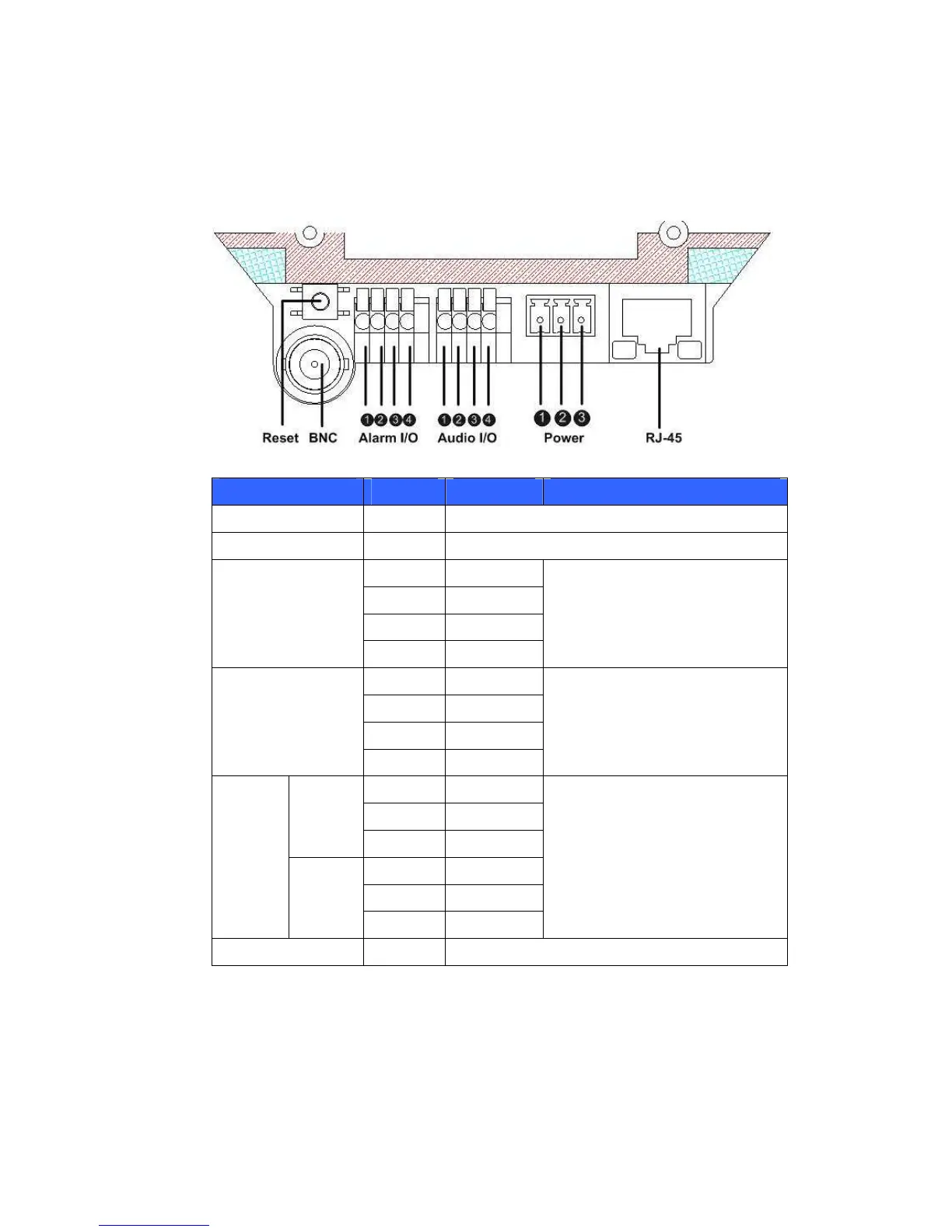

1.4 Camera’s Connectors
The diagram below shows the IP Dome Camera’s reset button and various
connectors. Definition for each connector will be given as follows.
Connector Pin No. Definition Remarks
Reset Button
- Restore to factory default
BNC
- Analog Video Output
1
Output
2
Output
3
Input
Alarm I/O
4
Input
Alarm connection
1 Input
2 GND
3 Output (R)
Audio I/O
4 Output (L)
Two-way audio transmission
1 Power
2 Reserved
DC 12V
3 GND
1 Power-1
2 Earth GND
Power
AC 24V
3 Power-2
Power connection
RJ-45
- 10/100 Mbps Ethernet / PoE
