Hardware Manual
19

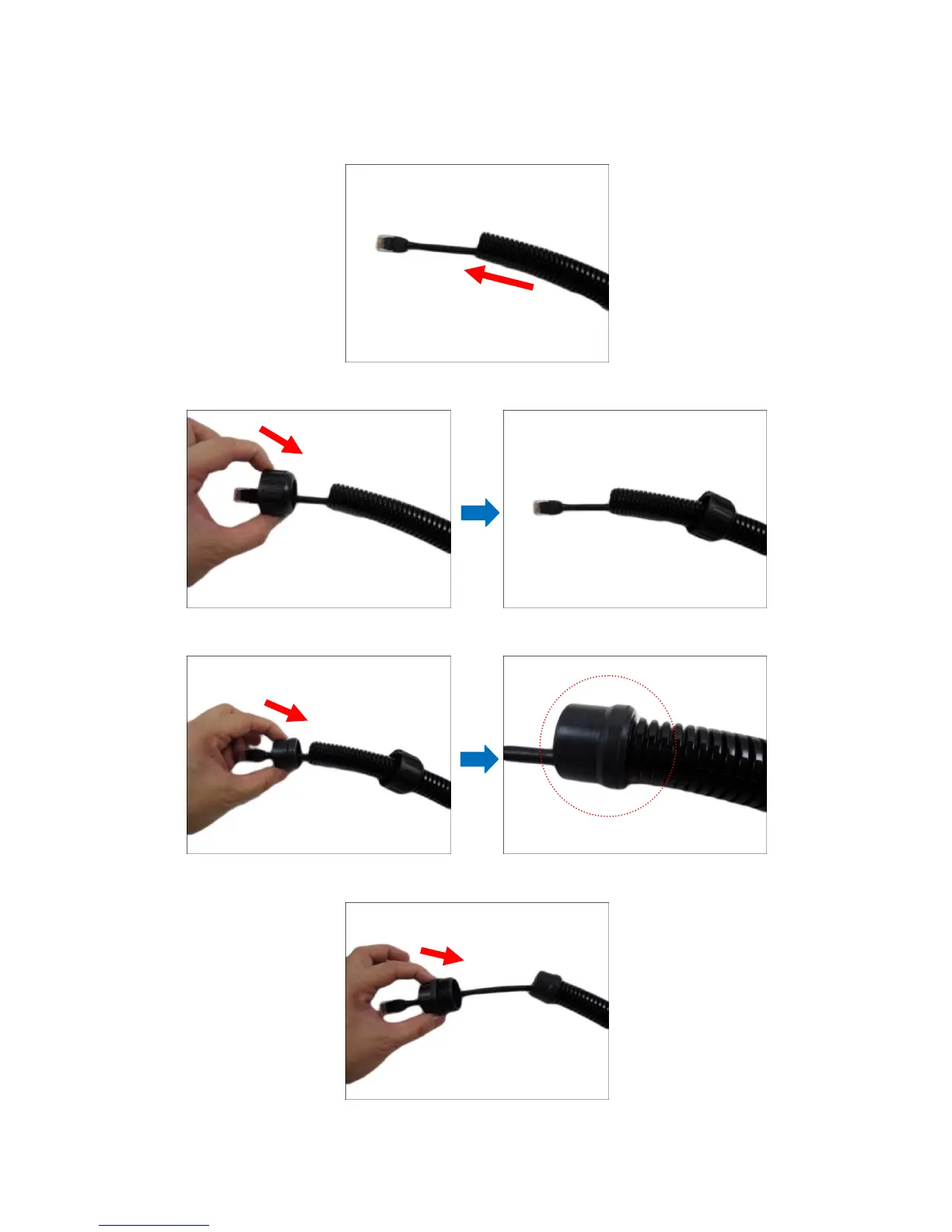

2. Pull the Ethernet cable through the flex conduit. Leave enough length of the cable outside
the flex conduit.
3. Insert the clamping nut through the flex conduit.
4. Insert the sealing nut and fix it at the end of the flex conduit.
5. Insert the gland body into the Ethernet cable.
