Hardware Manual
20

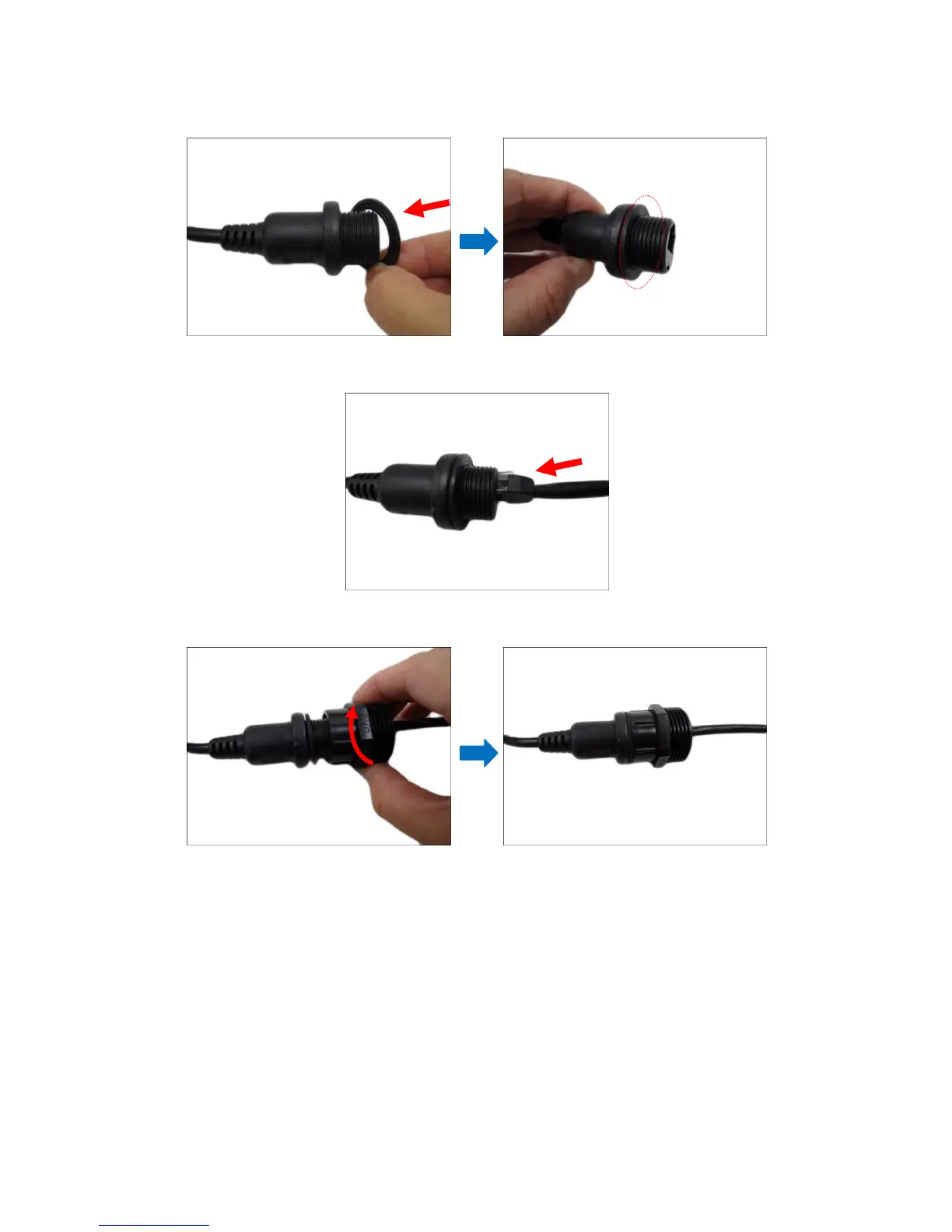

6. On the “pigtail” side, insert the washer into the “pigtail”.
7. Connect the Ethernet cable connector to the “pigtail” connector.
8. Attach the gland body to the “pigtail”.
NOTE: Make sure the gland body is tightly attached to the “pigtail” and the washer is
secured between them.
