LevelOne GEP-2450 - Rear Panel User Interfaces

6
• LED Indicators
LED
Color
Function
System LED
POWER
Green
Lit when +3.3V power is coming up
10/100/1000Ethernet TP Port 1 to 20 LED
LINK/ACT Green
Lit when connection with remote device is good
Blinks when any traffic is present
SPD
Green/
Yellow/
Off
Lit Green when TP link on 1000Mbps speed
Lit Yellow when TP link on 10/100Mbps speed
Off when no link occur
1000SX/LX Gigabit Fiber Port 21,22,23,24 LED
LINK/ACT Green
Lit when SFP connection with remote device is good
Blinks when any traffic is present
SPD
Green/
Yellow/
Off
Lit Green when SFP link on 1000Mbps speed
Lit Yellow when SFP link on 100Mbps speed
Off when no link occur
Table1-1
1-4-2. User Interfaces on the Rear Panel

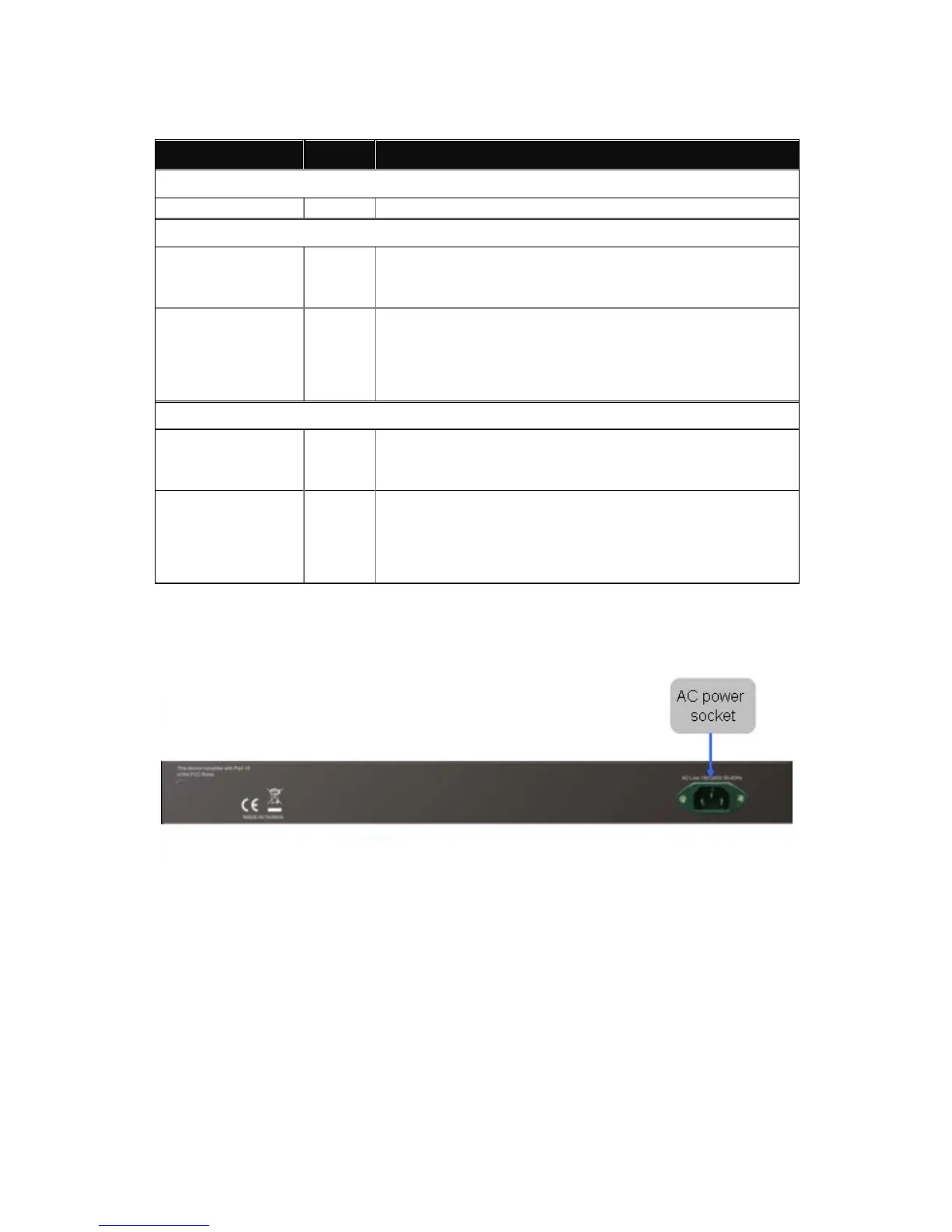

Fig. 1-3 Rear View of 24-PORT GBE WEB SMART PoE SWITCH
