4-2-4. VLAN Group Configuration
Function name:
Tag-Based VLAN Configuration (Tag based VLAN mode)
Function description:
The VLAN membership configuration for the selected switch can be monitored
and modified here. Up to 4094 VLANs are supported. This page allows for
adding and deleting VLANs as well as adding and deleting port members of
each VLAN.

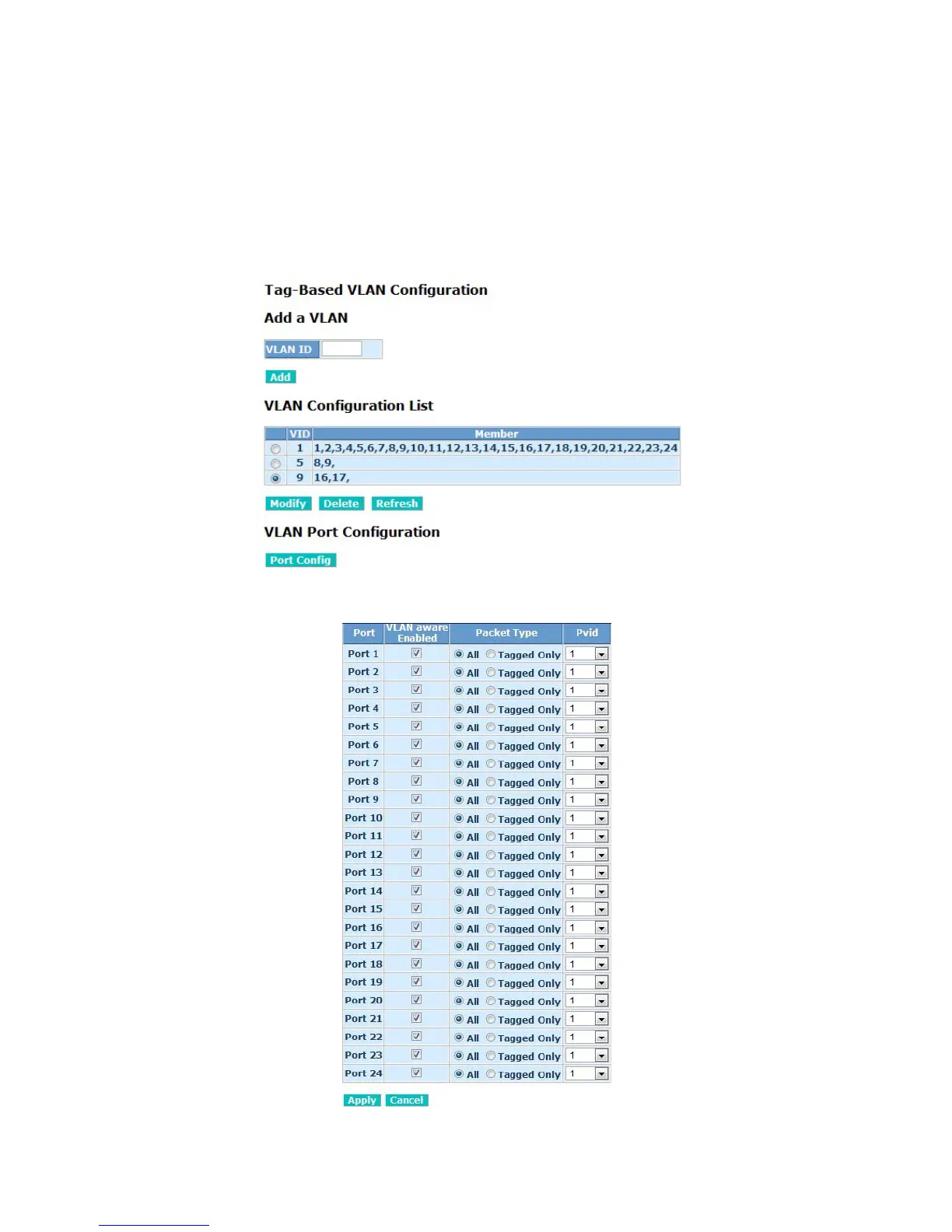

Fig. 4-5-1 tag- VLAN Mode
Fig. 4-5-2 Per port configuration
