4-2-12. PoE
Power Over Ethernet (PoE) technology allows IP telephones, wireless LAN access
points, and other powered devices (PDs) to receive power and transfer data over
existing LAN cabling.
Function name:
PoE Configuration
Function description:
In PoE Port Management function, user can configure the settings about PoE.
The switch complies with IEEE 802.3af protocol and be capable of detecting
automatically that whether the device linked to the port on the switch is PD
(Powered Device) or not. The switch also manage the power supplement based on
the Class of the PD, and it will stop supplying the power once the power required by
the PD excesses the Class, Short Circuit or over temperature occurs.

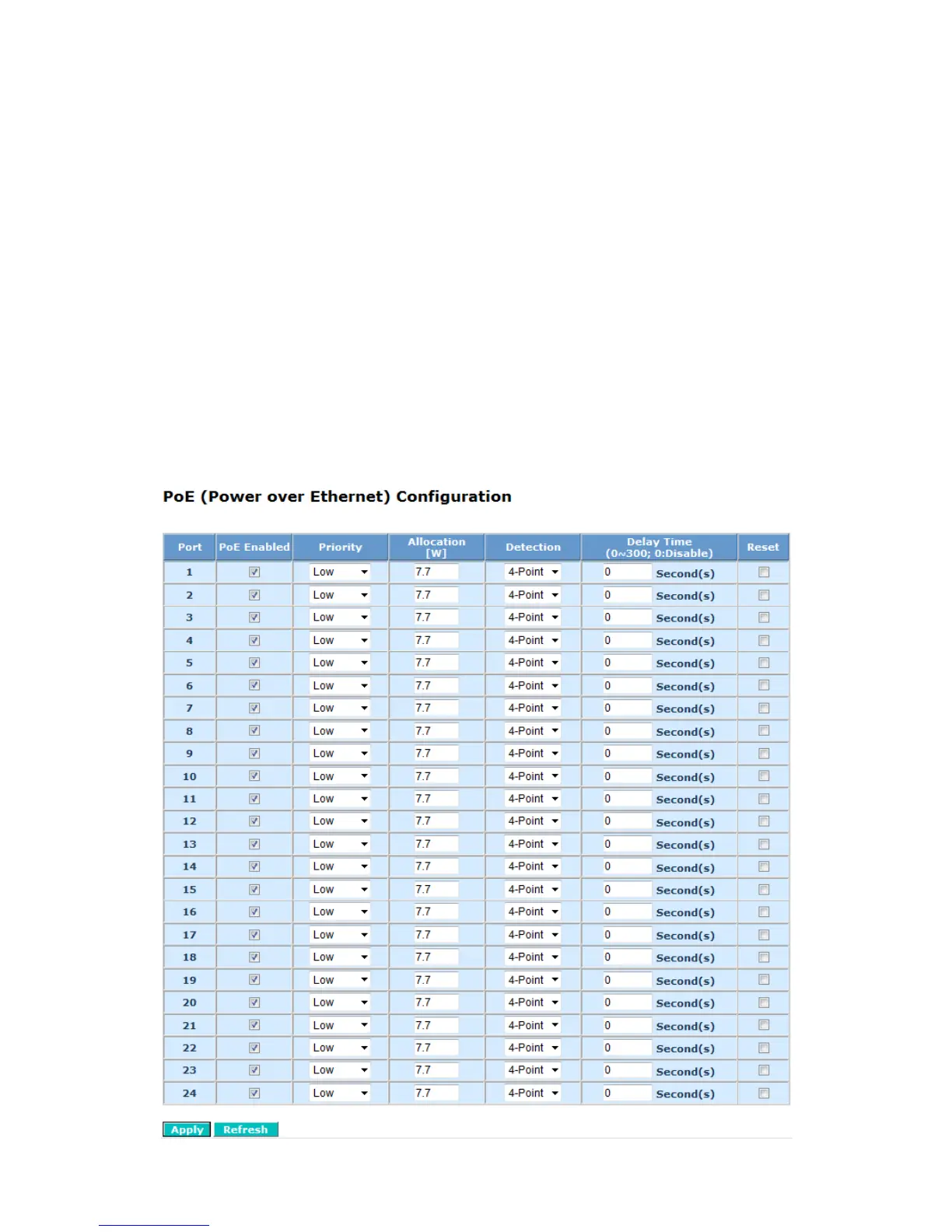

Fig. 4-16 PoE (Power over Ethernet)Configuration
