Chapter 1 Equipment Instruction and Power Supply
1. PoE Power supply：
There are two way to supply power for this device:

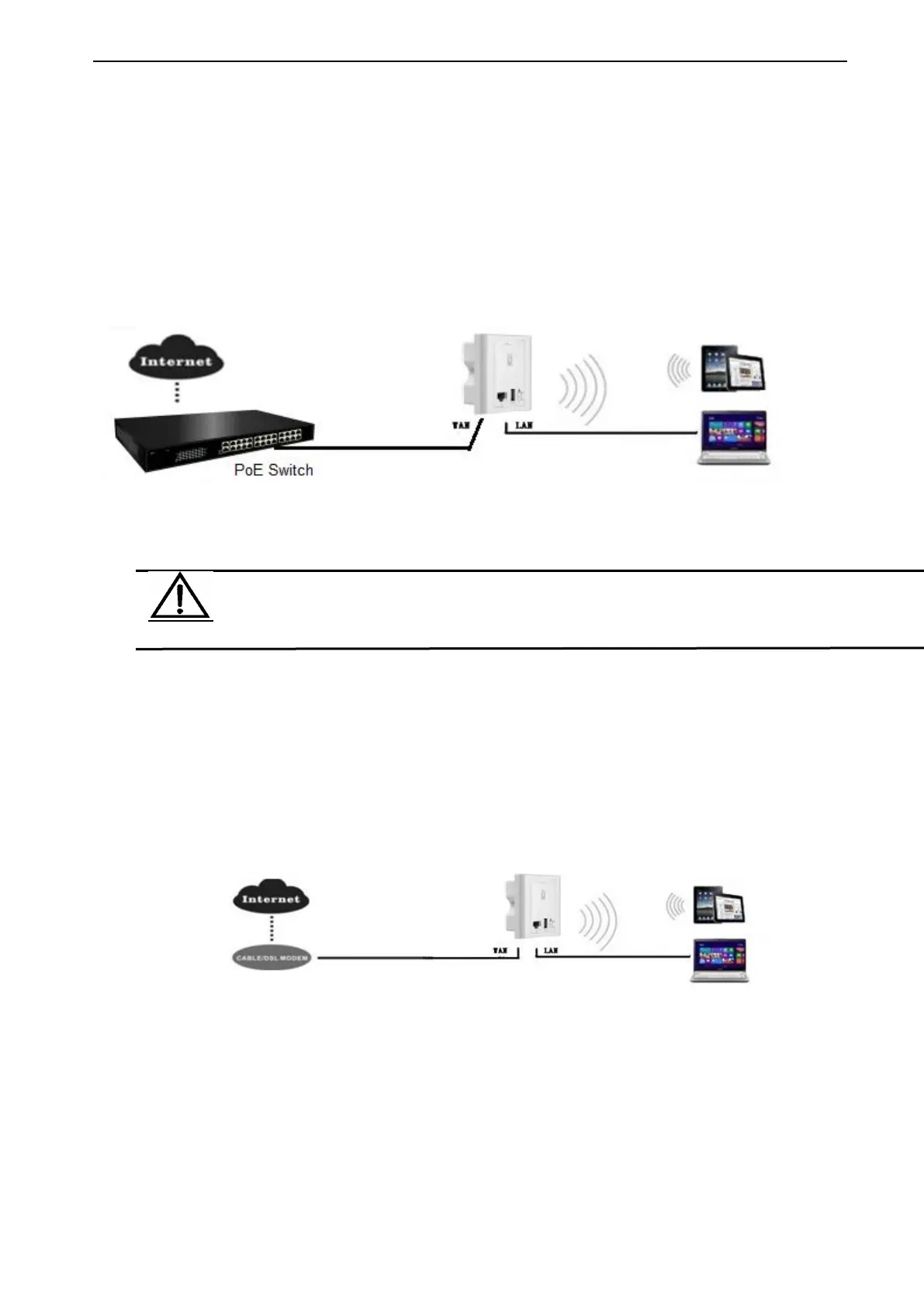

A. PoE Switch: pls make sure the PoE switch comply with IEEE 802.3af standard; then connect switch and
in wall AP as follow:
P2 Power Supply
2. Operation Mode description and usage:
There are three operation mode in our in wall AP: Internet Settings, Wireless Repeater, Wireless
Coverage
Internet Settings: WAN Connection, from cable internet to Wifi internet by setup PPPoE, Dynamic
IP, Static IP or PPTP in Internet Settings
P3 Internet Setting
Wireless Repeater：The in wall AP can bridge and extend the existing WiFi signal in this operation
mode, for example: this in wall AP bridge and extend the existing Wifi Signal from router, then PC will
connect with WiFi Repeater as follow:
wrong connection may damage the device.
