26
• Conduit ttings
• Conduits
• Blanking plugs
3. Connect.
4. Connect voltage leads.
WARNING: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC
FLASH. DO NOT ENERGIZE METER WITH VOLTAGE COVER REMOVED.
CAREFULLY READ AND FOLLOW INSTRUCTIONS.

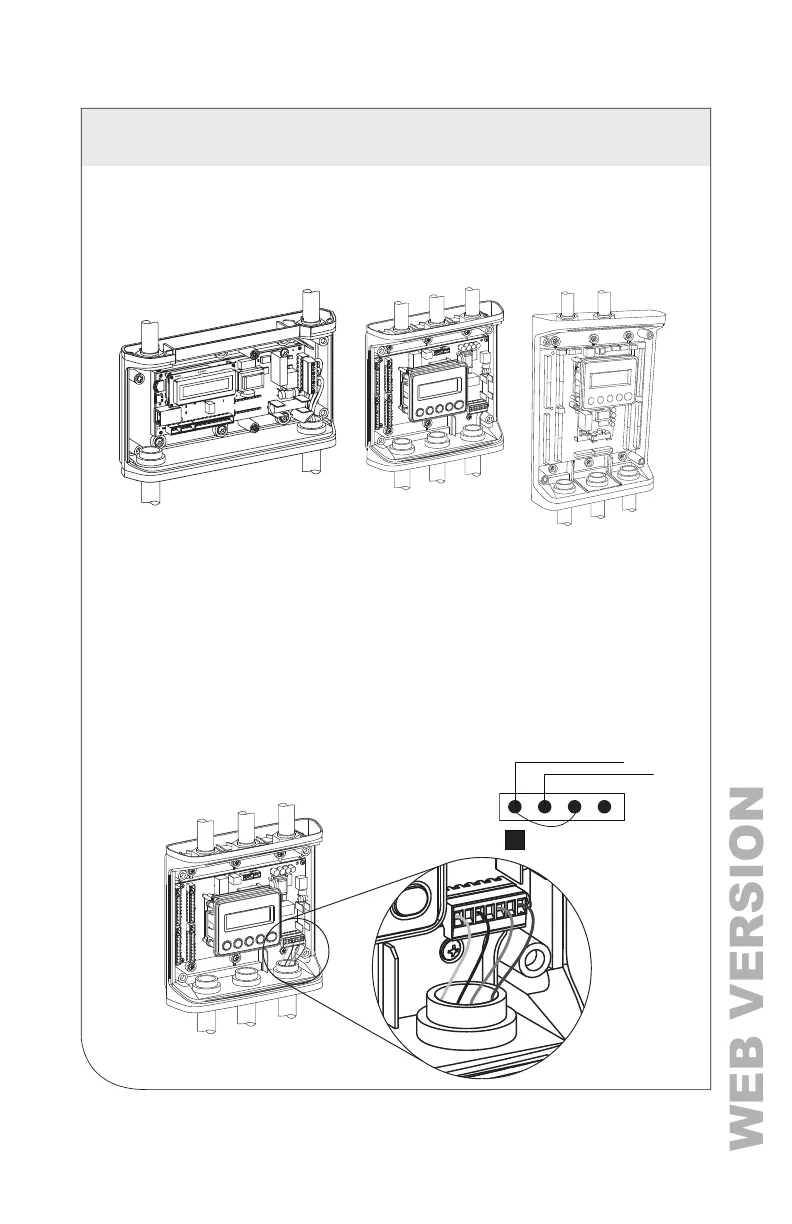

Connect the voltage leads (L1, L2, L3, and N as necessary) to the meter through
a dedicated disconnect or circuit breaker.
NOTE: Verify the circuit breaker is marked as the disconnect breaker for the meter.
Wiring the Meter in a Single-Phase Application: The meter is powered through
the voltage between L1 and L2. For single-phase installations, where no L2
exists, install a jumper from N to L2. This connection provides power to the meter,
maintaining L1-N as the metering voltage reference.
L1N L2 L3
Cat. 71D12
Cat. 71D48
Cat. 71D12
Cat. 71D03
5 METER INSTALLATION
