14. DERAILLEUR HANGER
WARNING! Correct grease application is critical to rider safety. ONLY apply
grease as instructed.
INSTALLATION PROCEDURE:

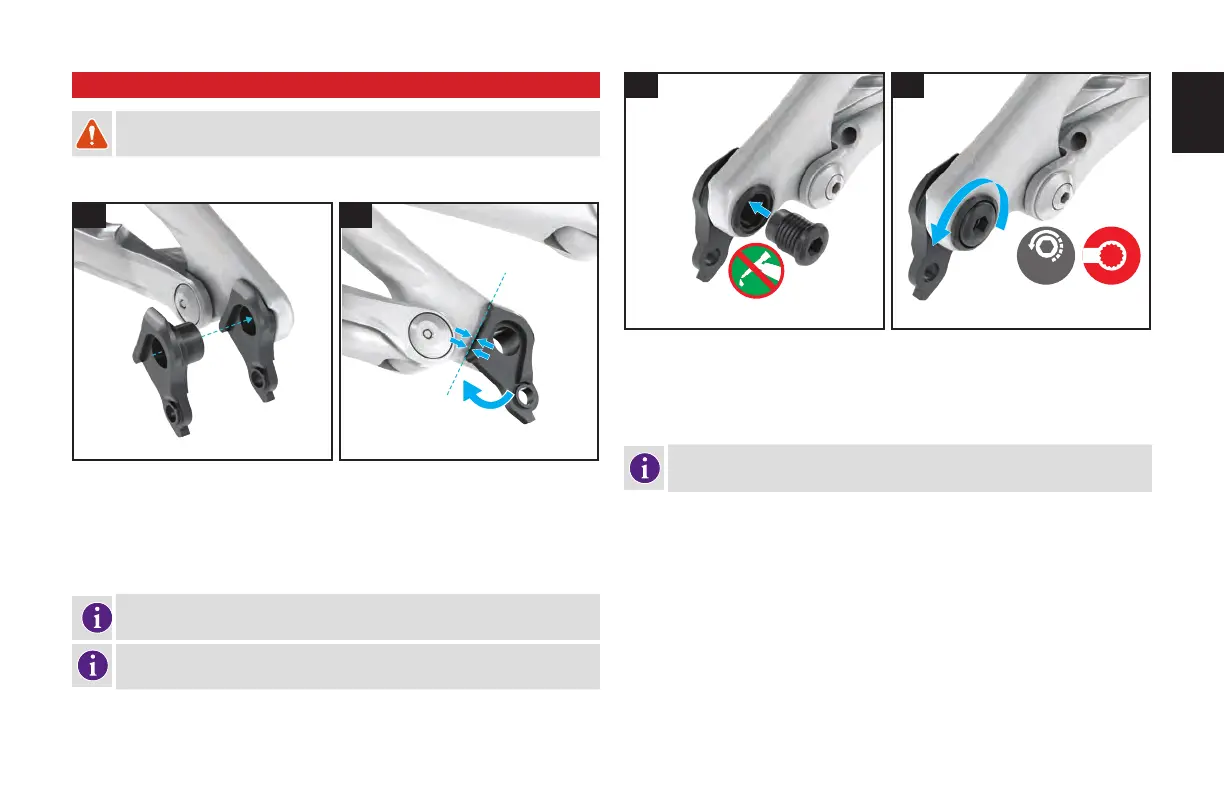

14.1 14.2
Fig. 14.1
 Install the UDH hanger assembly into the frame dropout.
Fig. 14.2
 Rotate the UDH hanger forward until it is completely seated in the hanger pocket or
contacts the rotational stop tab.
Apply grease ONLY to the thru-axle threads. Do NOT apply grease to the
frame, UDH hanger or UDH bolt threads.
The hanger must be completely seated in the hanger pocket or against the
frame stop tab when tightened to the specified torque.
8 MM
2
2
1
i
n
-
l
b
f
2
5
N
m
14.3 14.4
Fig.14.3
 Install the UDH washer, then thread the UDH bolt through the washer and into the hanger.
Fig.14.4
 Tighten the bolt to 221 in-lbf / 25 Nm. The UDH hanger bolt is left-hand threaded.
A reversible (left-hand and right-hand thread) torque wrench MUST be used to
ensure proper left-hand thread bolt torque.

Levo COMP ALLOY Specifications

General

Battery	Levo 700Wh
Fork	RockShox 35 Gold RL, 150mm
Drivetrain	SRAM
Tires	Butcher, 29x2.6"
Display	TCU
Charger	Specialized 4A
Shifters	SRAM SX Eagle, 12-speed
Rear Derailleur	SRAM SX Eagle, 12-speed
Cassette	SRAM PG-1210, 11-50t
Chain	SRAM SX Eagle, 12-speed
Chainrings	32t
Handlebars	Specialized Trail, 780mm
Stem	Specialized Trail, 50mm
Seatpost	Specialized, 30.9mm
Rims	Specialized 29, 30mm inner width
Front Hub	Specialized, sealed cartridge bearings
Rear Hub	Specialized, sealed cartridge bearings
Front Tire	Butcher, 29x2.6"
Rotors	200mm
Hubs	Specialized, sealed cartridge bearings
Bottom Bracket	SRAM DUB
Grips	Specialized Sip Grip
Headset	1-1/8" upper, 1.5" lower
Rear Tire	29x2.6"
